DUX PROFLO ELECTRIC STORAGE HOT WATER

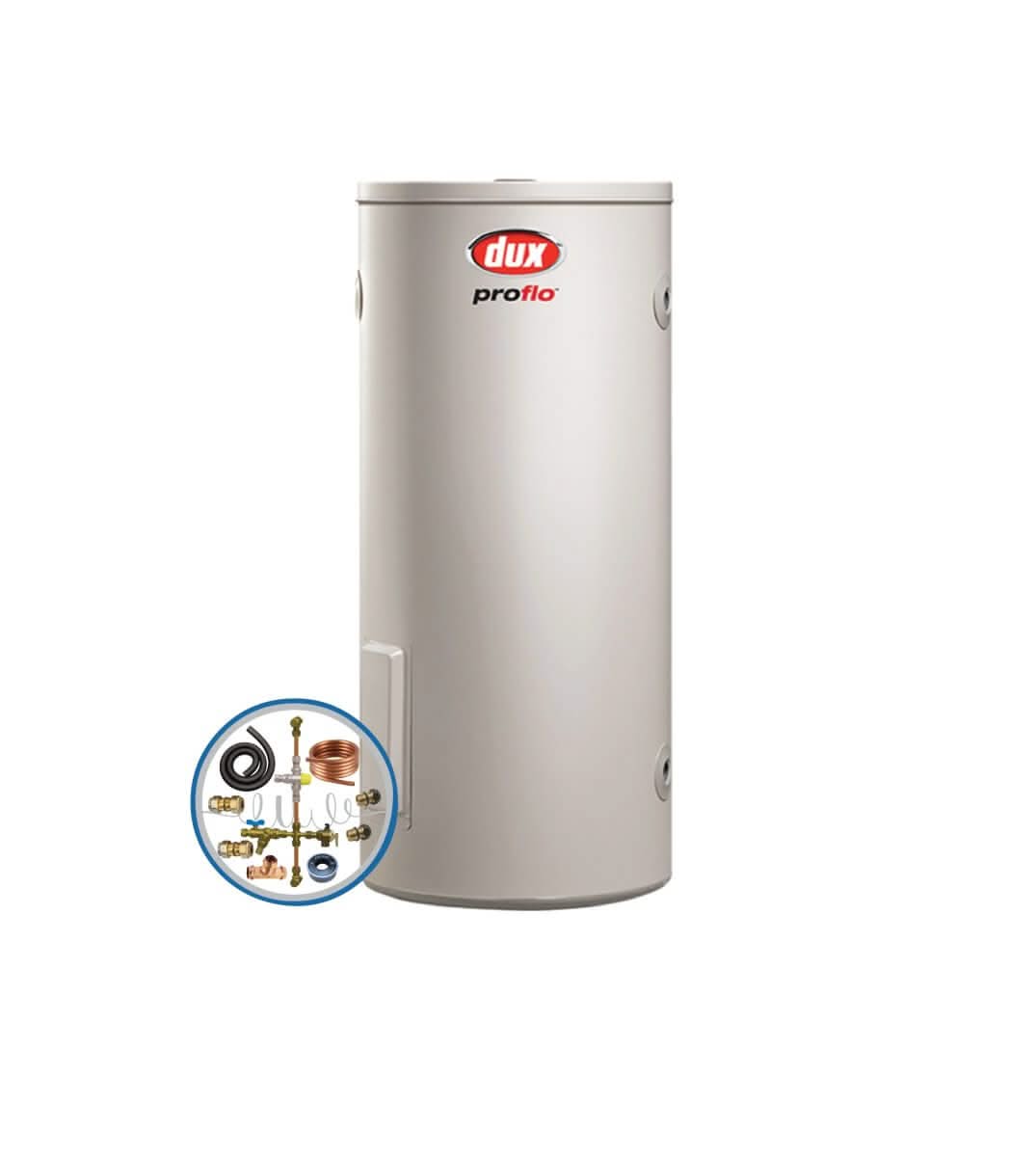

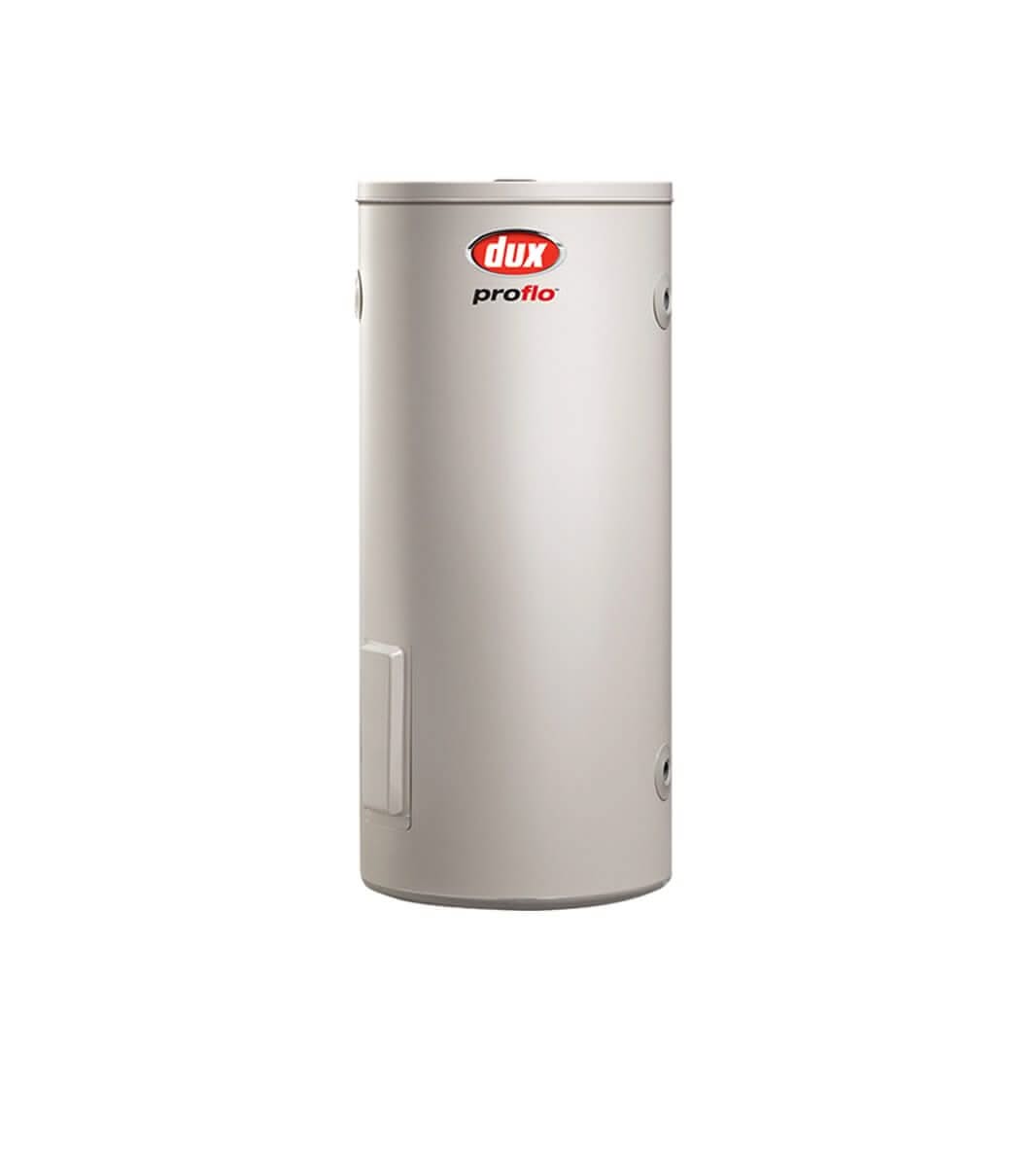

Dux Proflo 250L Electric Hot Water System – 250T1
The Dux Proflo 250L Electric Hot Water System is an Australian-made electric storage water heater designed for family homes needing dependable stored hot water at full mains pressure.
The current Dux 250T1 uses a 3.6kW electric element. Dux's current technical specifications list an actual storage capacity of 259 litres and a rated hot-water delivery of 250 litres.
Installed Today offers the Dux Proflo 250L as a supply-only hot water system or with supply and installation across eligible Brisbane and Gold Coast service areas.
Dux Proflo 250L at a glance: an Australian-made 250T1 electric storage water heater with 259L actual tank storage, 250L rated hot-water delivery, a 3.6kW element, dual-sided plumbing connections, indoor or outdoor installation suitability and full-flow mains-pressure hot water. Dux currently lists the 250L model for approximately 3–5 people depending on usage.
ABOUT THE SYSTEM
About the Dux Proflo 250L Electric Hot Water System
The Proflo 250L stores electrically heated water ready for household use. Dux positions the Proflo large electric range as a practical replacement option for existing electric storage water heaters, with tank sizes from 80L through to 400L.
The 250L model sits between the 160L and 315L units and can suit family homes requiring more stored hot water than smaller electric storage systems.
Dux lists the 250L Proflo for approximately 3–5 people. Actual suitability depends on shower duration, household routines, appliances, climate, electricity tariff and the time available for the system to reheat.
WHO IT SUITS
Who Is the Dux Proflo 250L Best For?
Family Homes
Dux lists the 250L Proflo for approximately 3–5 people, making it relevant to many family households with moderate-to-higher daily hot-water demand.
Electric Storage Replacements
Water connections on both sides of the cylinder can make compatible replacement installations easier when replacing an older electric storage system.

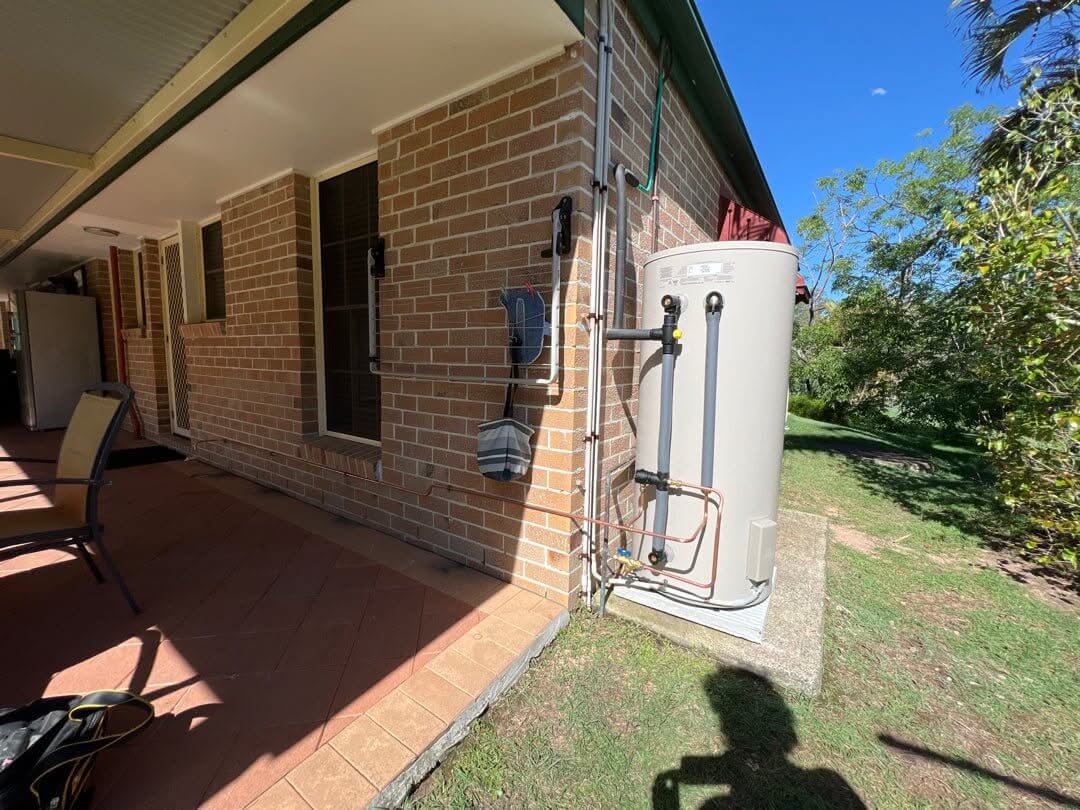

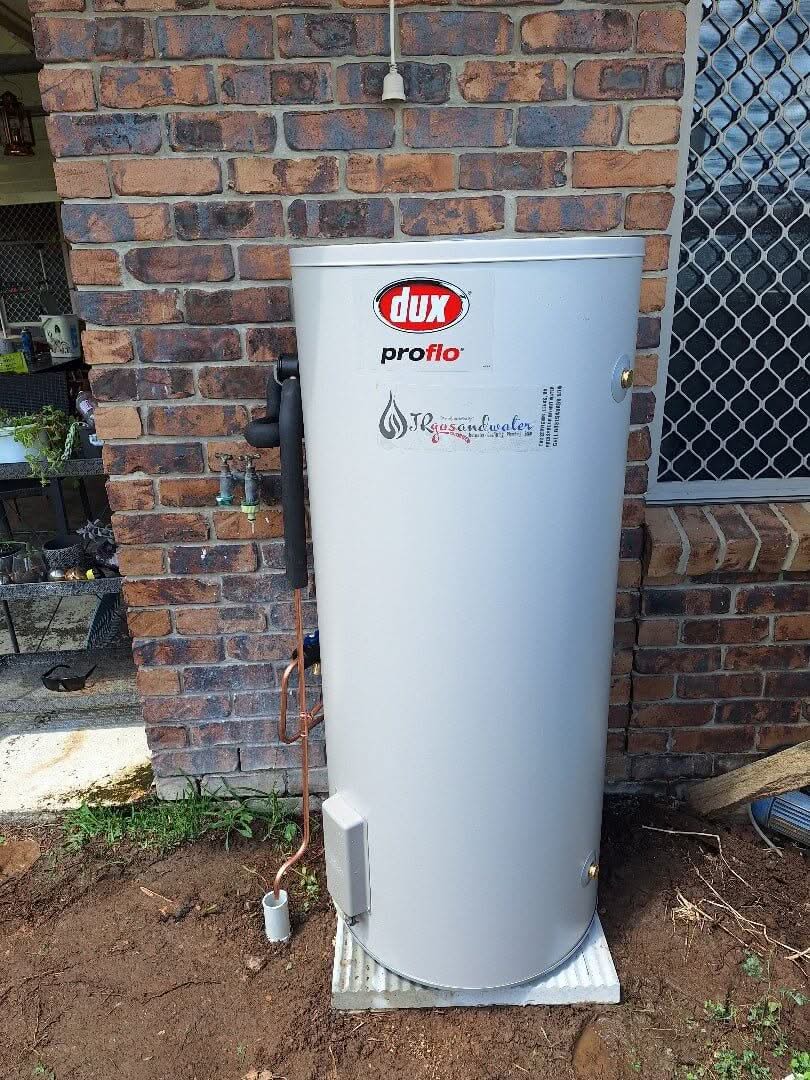

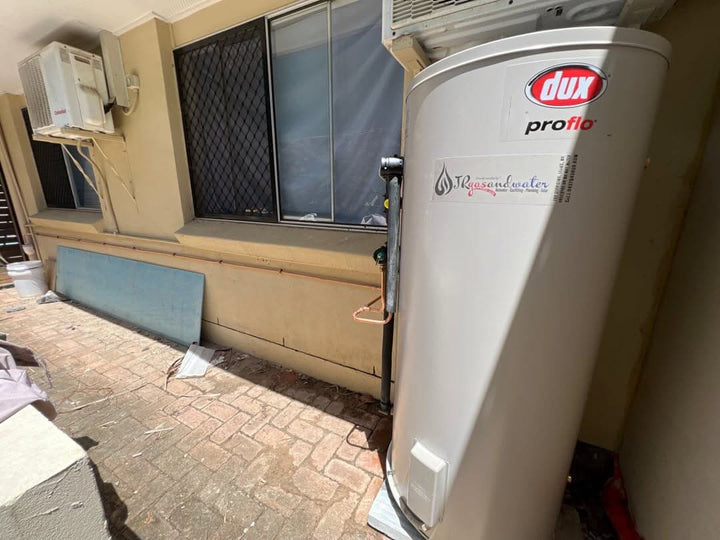

Indoor or Outdoor Locations
Dux lists the 250T1 for either indoor or outdoor installation where the selected location meets manufacturer and regulatory requirements.
PRODUCT AT A GLANCE
Dux Proflo 250L Key Details
250L
Hot Water Delivery
259L
Actual Storage
3–5 People
Dux Sizing Guide
10 Years
Tank Warranty*
*Dux specifies a 10-year tank warranty for qualifying single-family dwelling installations. Other applications receive different tank warranty coverage. Full Dux warranty conditions apply.
CURRENT MODEL
Dux 250T1 Electric Storage Configuration
250T1
The current Proflo 250L model is 250T1. Dux specifies one 3.6kW element for the current Australian range.
240V Single Phase
Dux states that current Proflo electric storage models operate on 240V AC single-phase electricity. Electrical suitability must be confirmed before installation.
Older Dux documentation may show additional historic element variants in extended model codes. The current January 2026 Dux product guide lists the 250T1 with a 3.6kW element.
SIZING
Is a 250L Electric Hot Water System Right for Your Home?
Dux currently lists the Proflo 250L for approximately 3–5 people, but household size should only be treated as a sizing guide.
A household with long showers, multiple bathrooms or high hot-water appliance use can consume considerably more water than another home with the same number of occupants. Electricity tariff availability is also important because restricted or off-peak tariffs limit when the tank can reheat.
It May Suit You If...
You are replacing a similar-sized electric storage heater or need greater stored capacity than a 160L system.
Check Your Tariff
Dux notes that off-peak supply may only provide power for a limited period each night, so tank sizing and usage need to suit the available heating window.
Check the Existing Site
Confirm physical access, base support, plumbing, valves, drainage and electrical supply before ordering the system or an installation package.
KEY FEATURES
Key Features of the Dux Proflo 250L
Australian Made
Dux manufactures its 80L–400L Proflo large electric storage range in Australia for Australian homes and conditions.

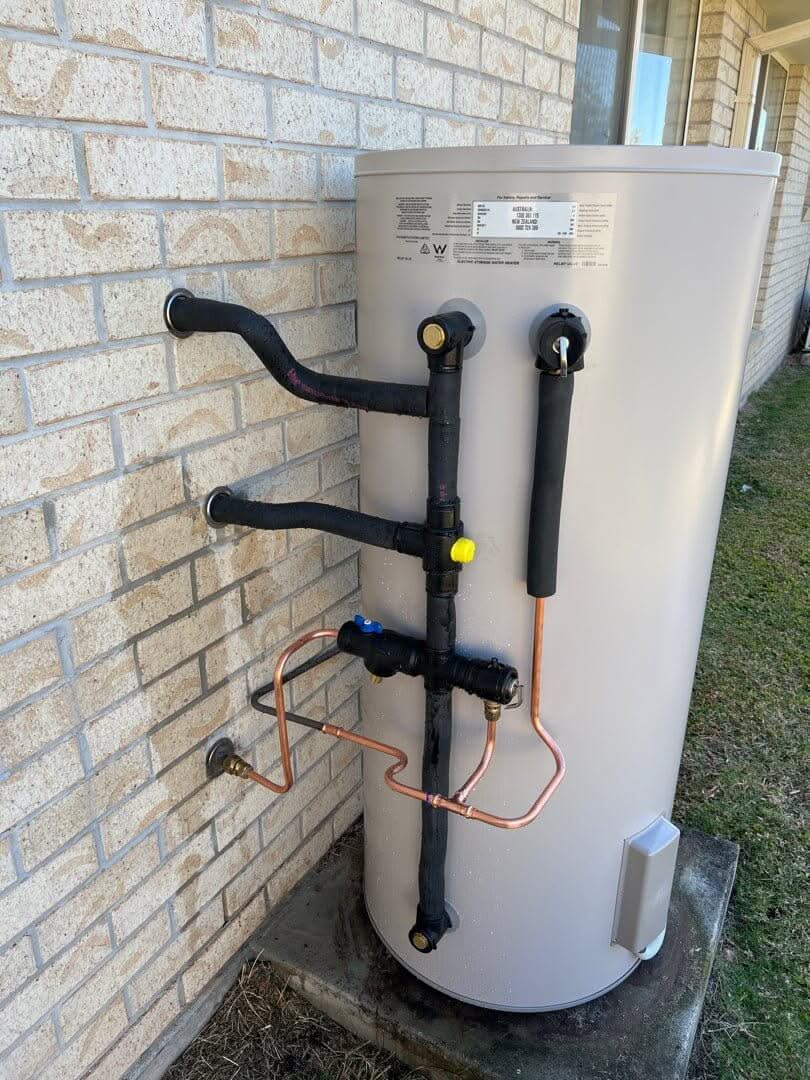

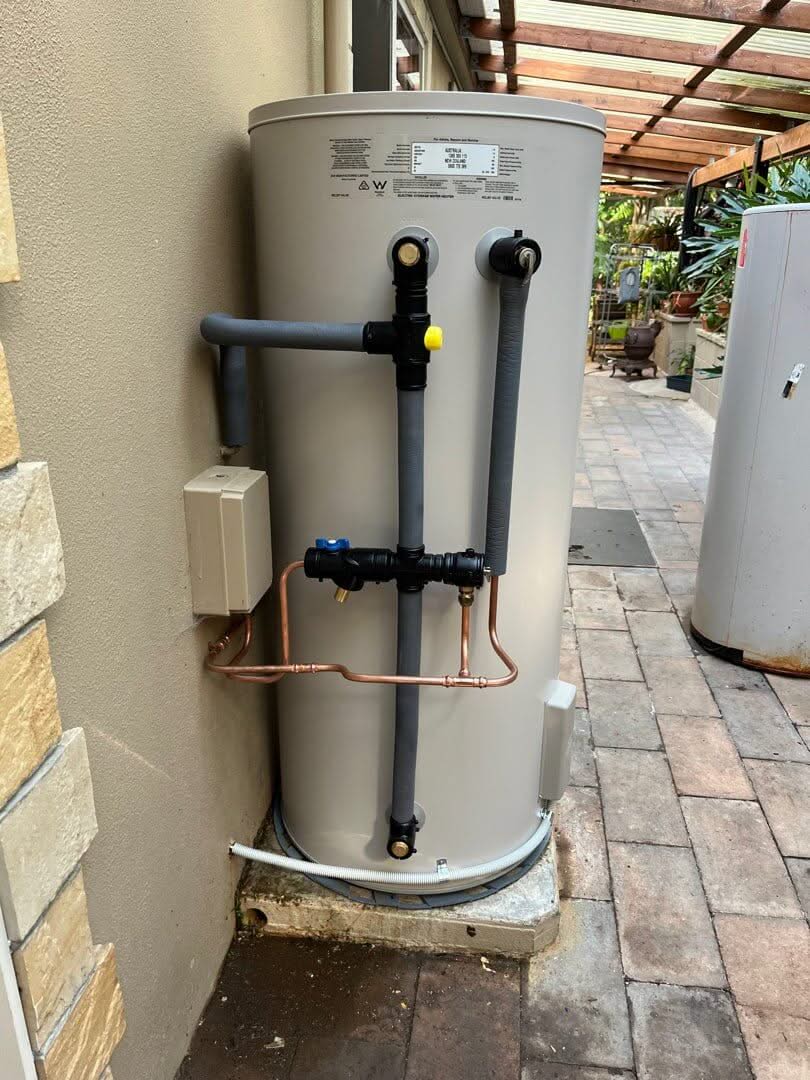

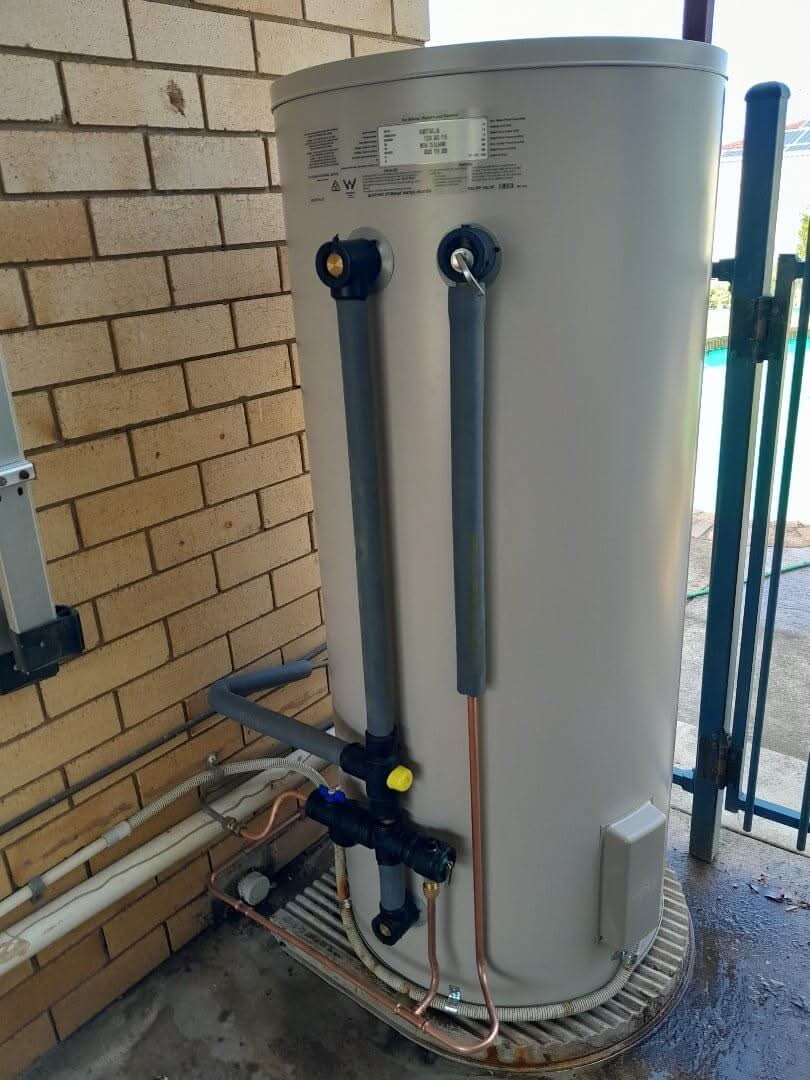

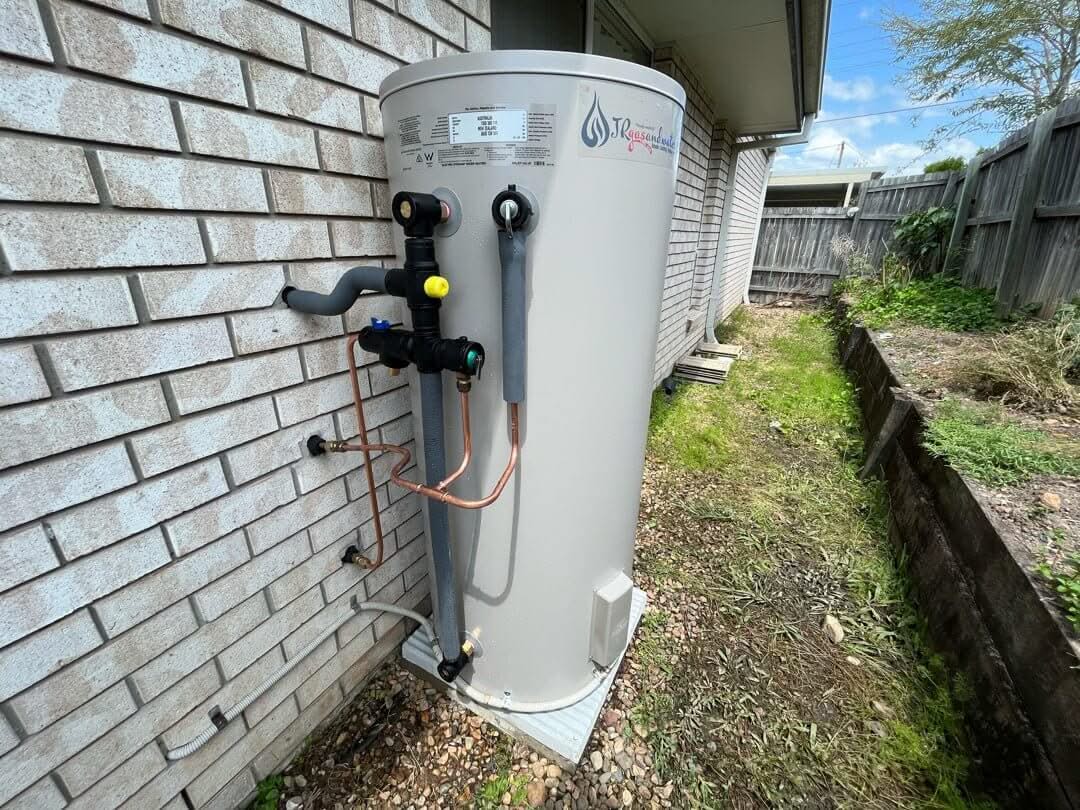

Dual-Handed Plumbing
Water connections on both sides of the tank provide greater flexibility for compatible replacement installations.
Commercial-Grade Enamel
The tank uses durable Y-class commercial-grade enamel together with a larger sacrificial anode for tank protection.
Hard-Wearing Polymer Base
A tough rust-resistant polymer base helps protect the bottom of the cylinder from moisture and physical damage.
50mm Dense Foam Insulation
Dux specifies 50mm thick dense foam insulation across its large Proflo range to reduce stored heat loss.
Lead-Free Certified Range
Dux states that its current Proflo electric storage range is certified lead-free.
TECHNICAL DETAILS
Dux Proflo 250L Specifications
| Specification | Dux Proflo 250L |
|---|---|
| Brand | Dux |
| Range | Proflo Electric Storage |
| Current Model | 250T1 |
| Nominal Product Size | 250L |
| Actual Storage Capacity | 259L |
| Hot Water Delivery Rating | 250L |
| Recommended Household Size | Approximately 3–5 people, depending on usage |
| Element | 1 × 3.6kW |
| Electrical Supply | 240V AC single phase |
| Empty Weight | 72kg |
| Relief Valve Pressure | 1000 kPa |
| Maximum Inlet Pressure | 800 kPa |
| Installation | Indoor or outdoor |
| Water Connections | Dual-sided / dual-handed |
| Tank Protection | Y-class commercial-grade enamel and sacrificial anode |
| Base | Hard-wearing polymer base |
| Insulation | 50mm thick dense foam insulation |
| Hard Water Option | Available |
| Manufacturing | Made in Australia |
| Tank Warranty – Single Family Dwelling | 10 years |
| Tank Warranty – Other Applications | 3 years |
| Parts & Labour Warranty | 1 year |
DIMENSIONS
Dux Proflo 250L Dimensions
1445mm
Overall Height
660mm
Overall Diameter
72kg
Empty Weight
259L
Storage Capacity
| Dimension | Measurement |
|---|---|
| Overall Height | 1445mm |
| Tank Diameter | 620mm |
| Overall Diameter | 660mm |
| Cold Water Inlet Height | 195mm |
| Hot Water Outlet Height | 1210mm |
| Electrical Entry Height | 140mm |
| Empty Weight | 72kg |
Allow additional space for plumbing, valves and servicing. Dux requires access to the element, thermostat, relief valve and sacrificial anode and advises allowing approximately half the water heater's height above the unit for anode access.
INSTALLATION LOCATION

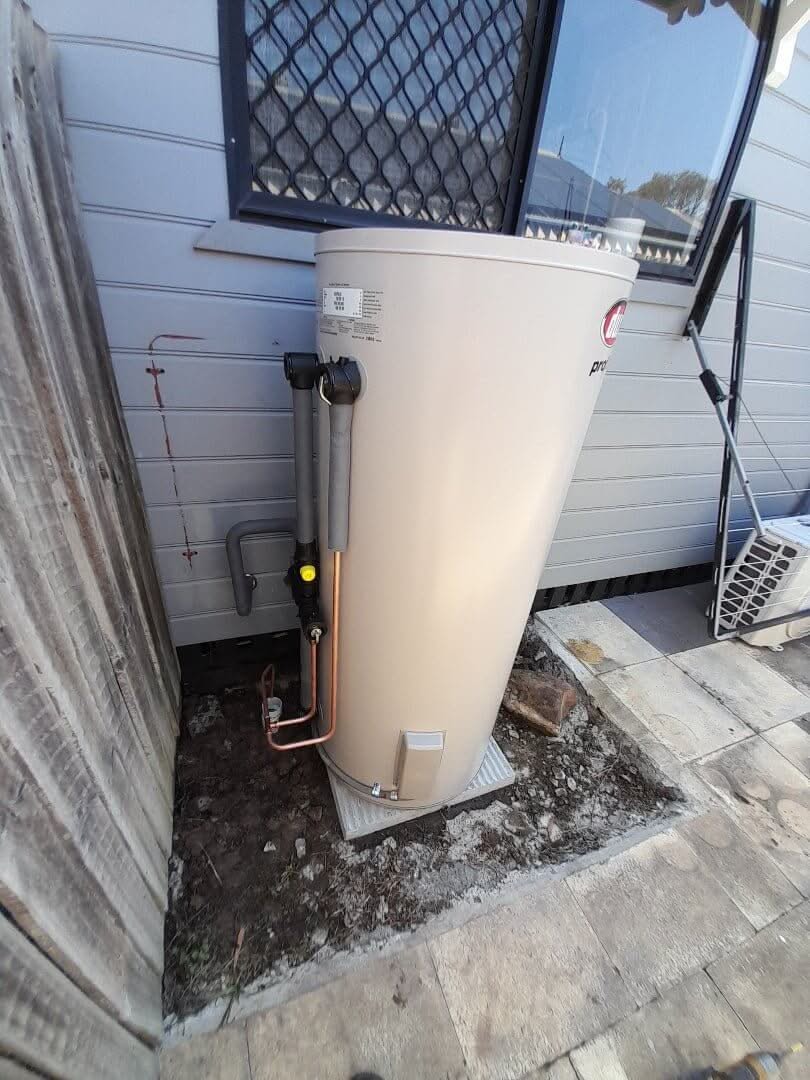

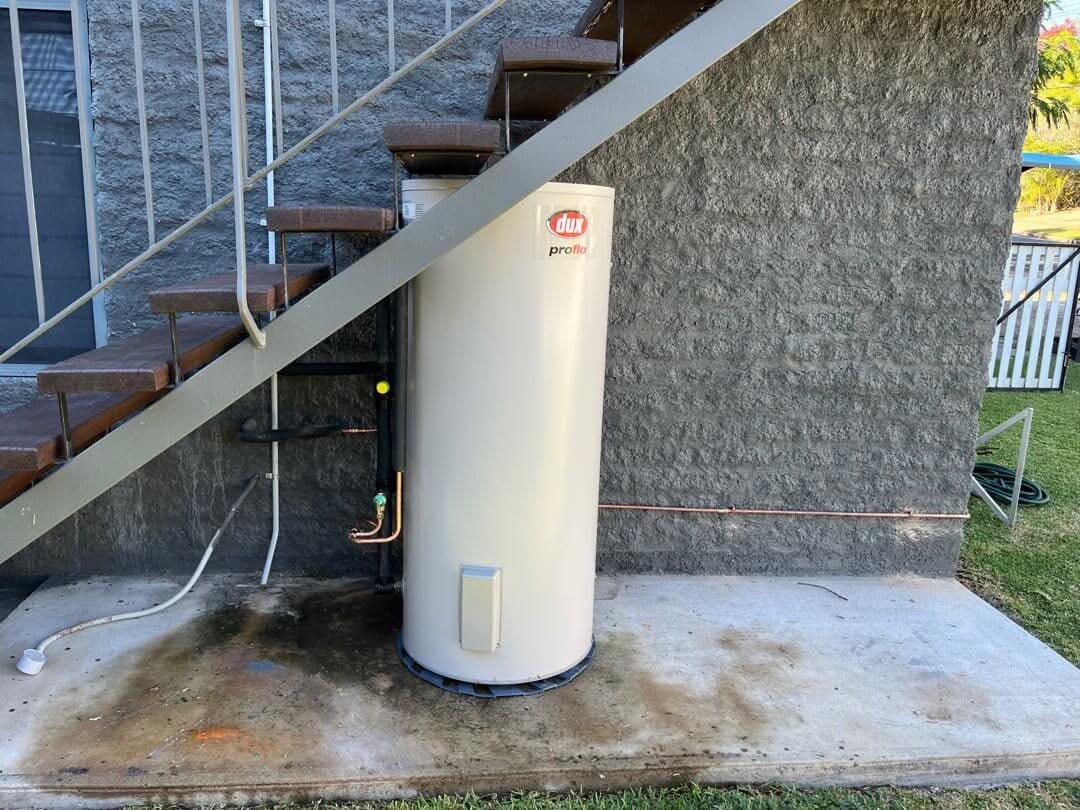

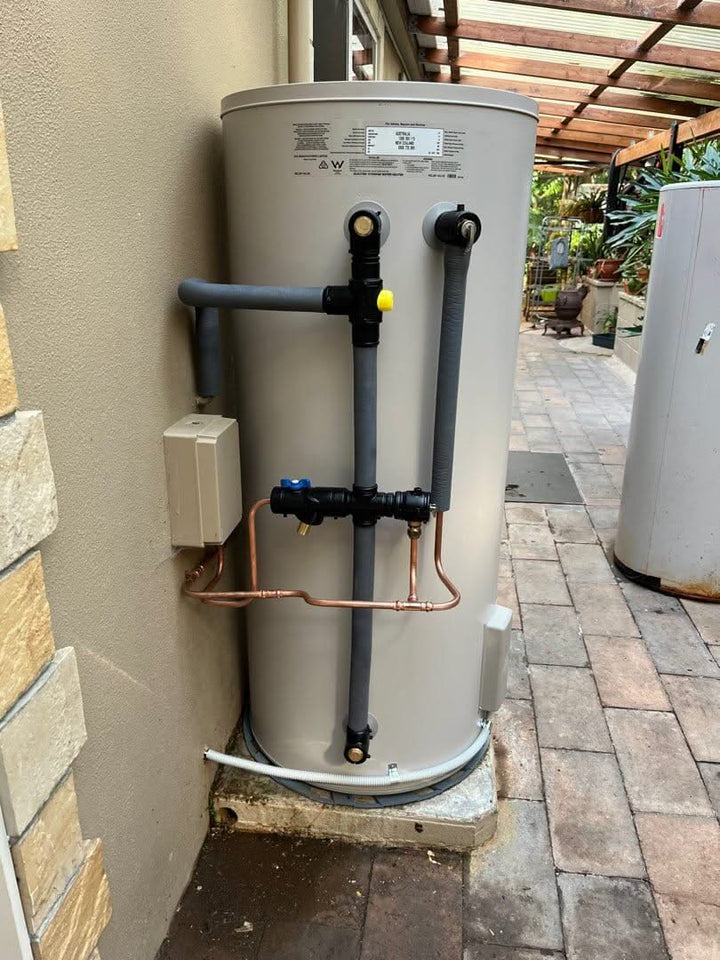

Can the Dux Proflo 250L Be Installed Indoors or Outdoors?
Yes. Dux lists the Proflo 250L for indoor or outdoor installation.
The cylinder must be positioned on a flat, solid supporting surface. Dux specifically states that connected pipework must not be used to support the water heater.

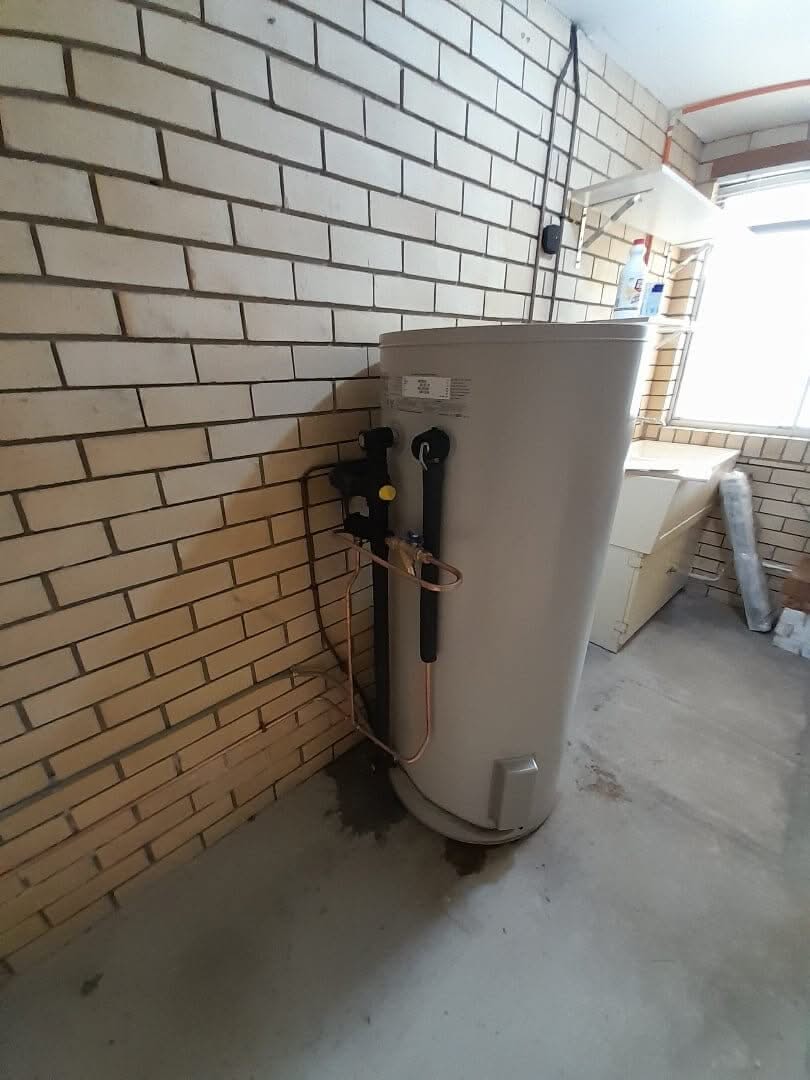

For indoor installations, a properly drained safe tray is required where water leakage could cause property damage. The final installation must also meet local plumbing requirements.
INSTALLATION REQUIREMENTS
What Is Required to Install the Dux Proflo 250L?
Dux states that its Proflo electric storage water heater must be installed by a licensed tradesperson and in accordance with relevant plumbing, electrical and authority requirements.
- Flat and solid supporting surface
- Suitable hot and cold water pipework
- Correct Pressure & Temperature Relief valve arrangement
- Suitable cold-water isolation and non-return arrangement
- Pressure-reducing valve where supply pressure requires it
- Correct relief-valve drainage
- Suitable delivery-temperature control where required
- 240V AC single-phase electrical supply
- Electrical circuit suitable for the 3.6kW element
- Fixed-wiring isolation in accordance with applicable wiring rules
- Safe tray and drainage where required indoors
- Access for element, thermostat, relief valve and anode servicing
- Compliance with applicable plumbing requirements
- Electrical installation compliant with AS/NZS 3000
WATER PRESSURE
Dux Proflo 250L Water Pressure Requirements
Dux's current technical information specifies a 1000 kPa Pressure & Temperature Relief valve for the 250T1.
The Proflo owner's manual states that the 250L model is designed for direct connection to water-supply pressures up to 800 kPa.
Where the mains pressure can exceed or fluctuate beyond the permitted inlet pressure, Dux requires an appropriate pressure-reducing valve in the cold-water supply.
FULL MAINS PRESSURE
Full Mains-Pressure Hot Water
Dux specifies full flow pressure to all outlets across the Proflo large electric range.
This makes the Proflo 250L a practical replacement option where the home already uses a conventional mains-pressure electric storage system.
Actual flow at individual outlets also depends on the property's incoming water pressure, valve arrangement, pipe sizes and plumbing layout.
INSULATION
50mm Dense Foam Insulation
Dux specifies 50mm thick dense foam insulation for its large Proflo electric storage water heaters.
The insulation reduces heat loss from the stored water between heating cycles. Actual running costs depend on household consumption, electricity tariff, climate and the available heating period.
HARD WATER
Is There a Hard-Water Option?
Yes. Dux lists a hard-water option for the Proflo 250L.
For the 250T1, Dux publishes different replacement sacrificial anodes for average-to-hard and extremely hard water conditions. Correct anode selection and servicing can be important where local water chemistry is aggressive.
Where water quality is unusual, confirm the appropriate configuration and maintenance requirements before installation.
SUPPLY ONLY
Buy the Dux Proflo 250L Supply Only
Choose supply only if you require the Dux Proflo 250L water heater and already have appropriately licensed trades arranged for installation.
The supply-only price covers the water heater itself. Installation, valves, electrical alterations, plumbing modifications, compliant base or tray work, old-system removal and disposal are separate unless specifically included in the selected order.
The current model is the Dux 250T1 with a 3.6kW element. Confirm your existing electrical supply and installation conditions before ordering.
SUPPLY & INSTALL
Dux Proflo 250L Supplied & Installed
Supply Only
Order the 250T1 by itself where suitable licensed plumbing and electrical installation are already arranged.
Brisbane Installation
Eligible Brisbane customers can check available supply-and-install options for replacement of a compatible electric storage hot-water system.
Gold Coast Installation
Eligible Gold Coast customers can also check installation options and any additional plumbing, electrical, access or compliance requirements before checkout.
AUSTRALIA-WIDE SUPPLY
Buy the Dux Proflo 250L Across Australia
Installed Today offers supply-only ordering across supported Australian delivery areas, with local supply-and-install options available in eligible Brisbane and Gold Coast locations.
Customers elsewhere can order the Dux 250T1 for delivery where available and arrange compliant local installation with appropriately licensed trades.
Brisbane
Gold Coast
Sydney
Melbourne
Adelaide
Perth
BRISBANE INSTALLATION

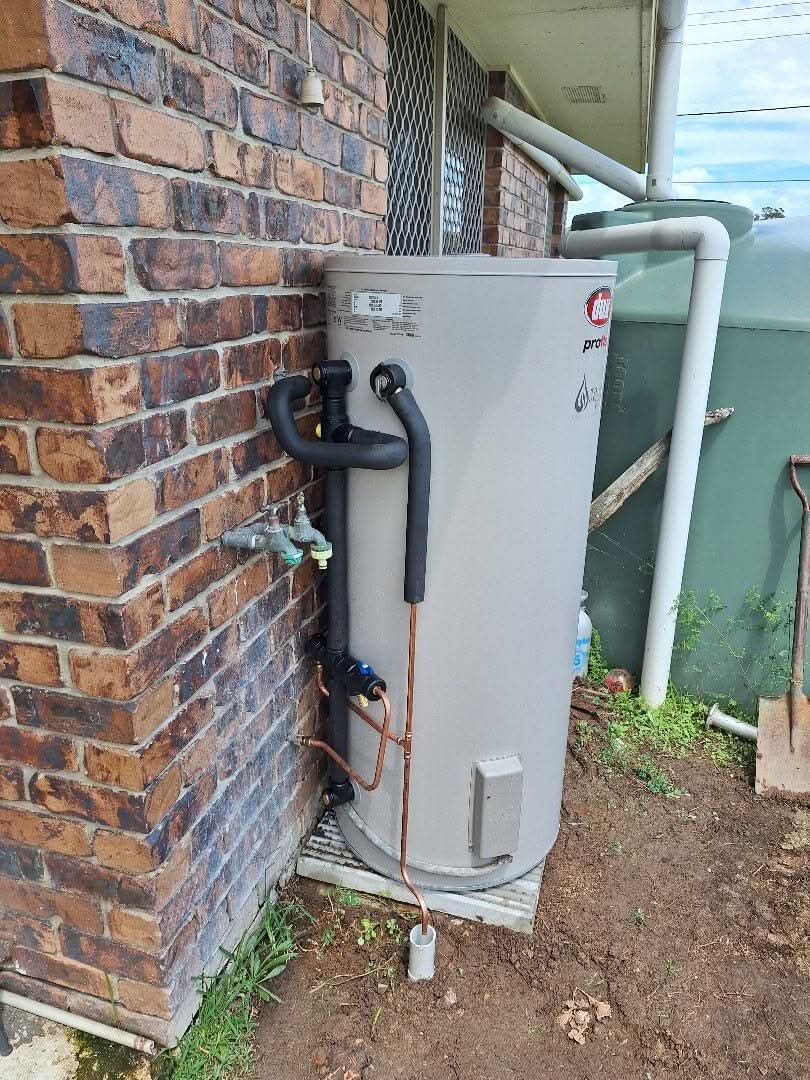

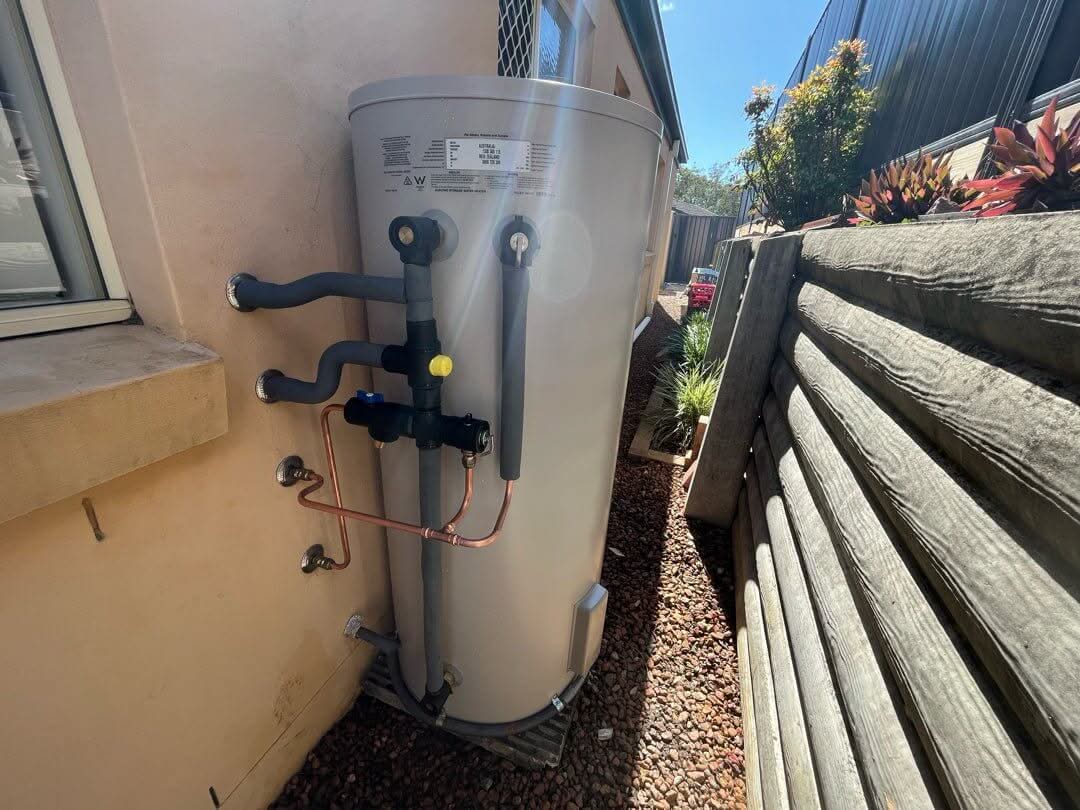

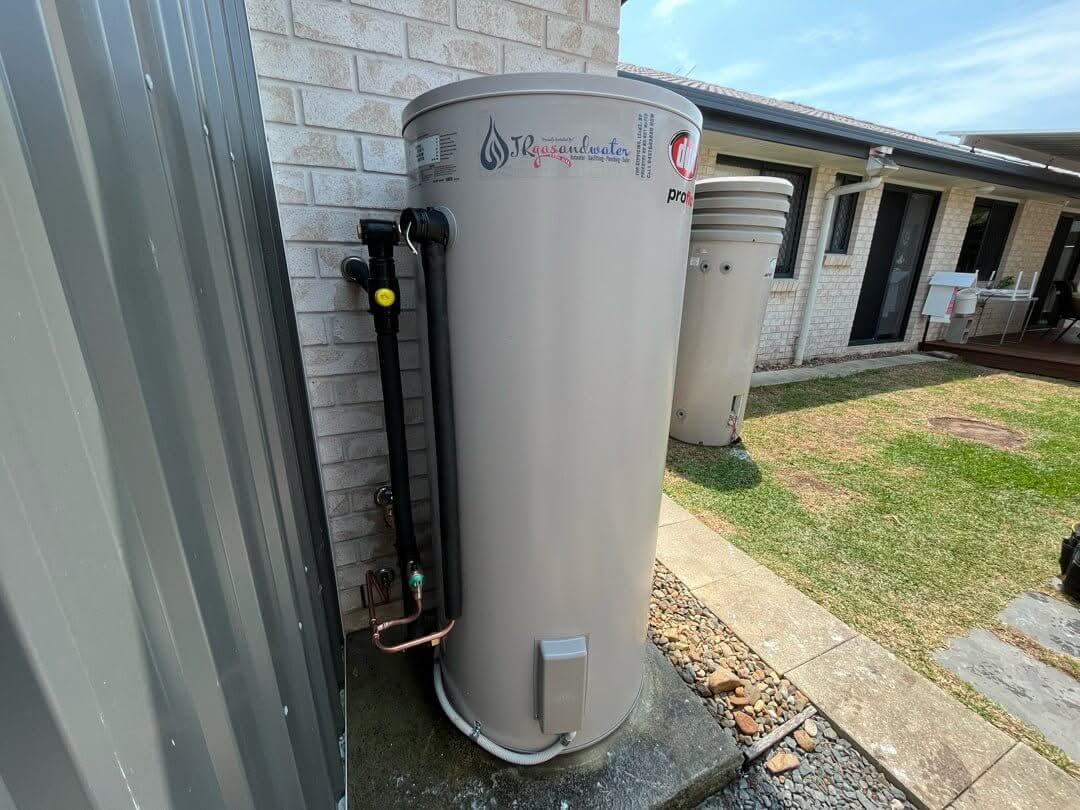

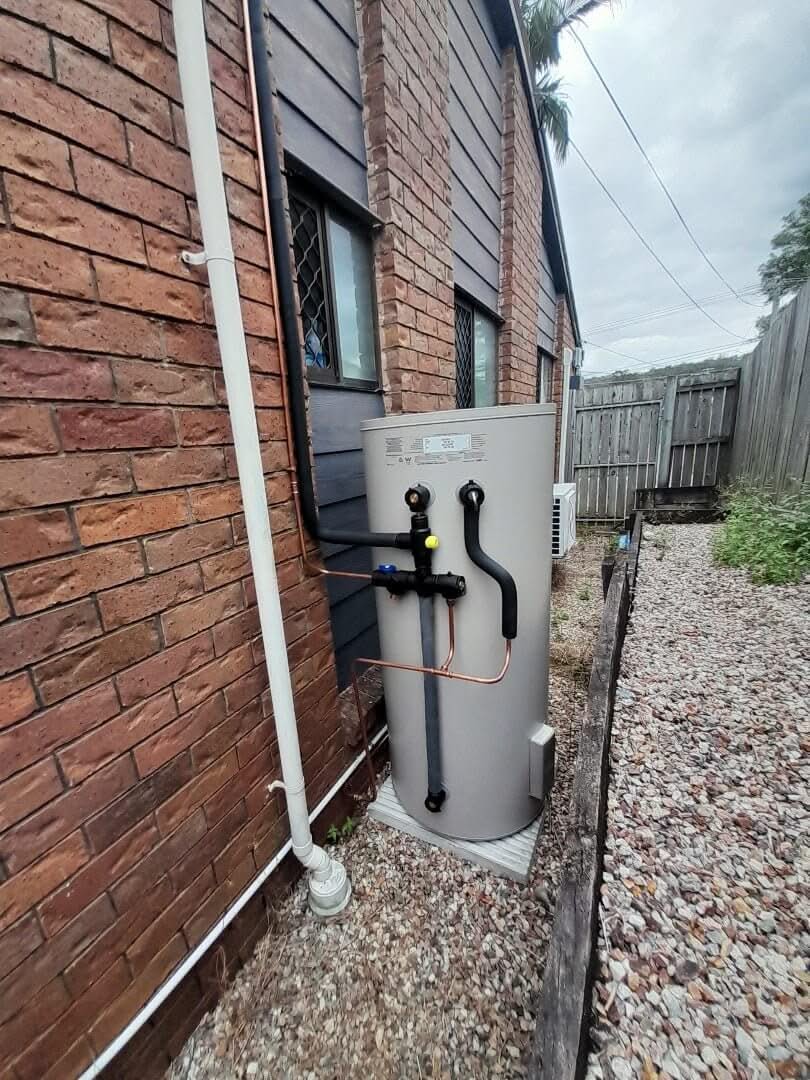

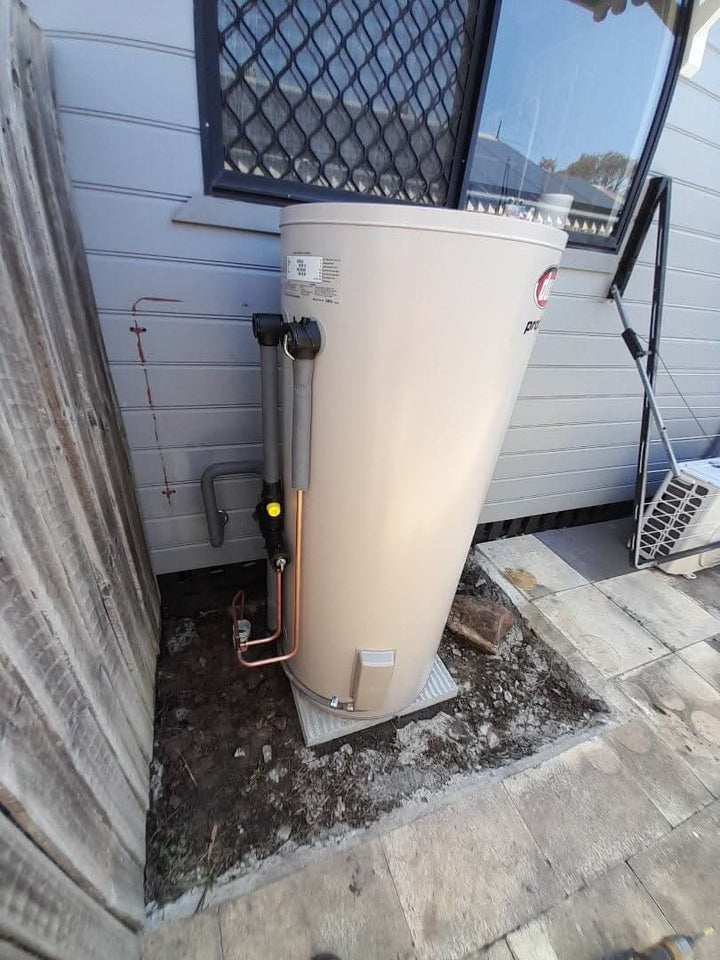

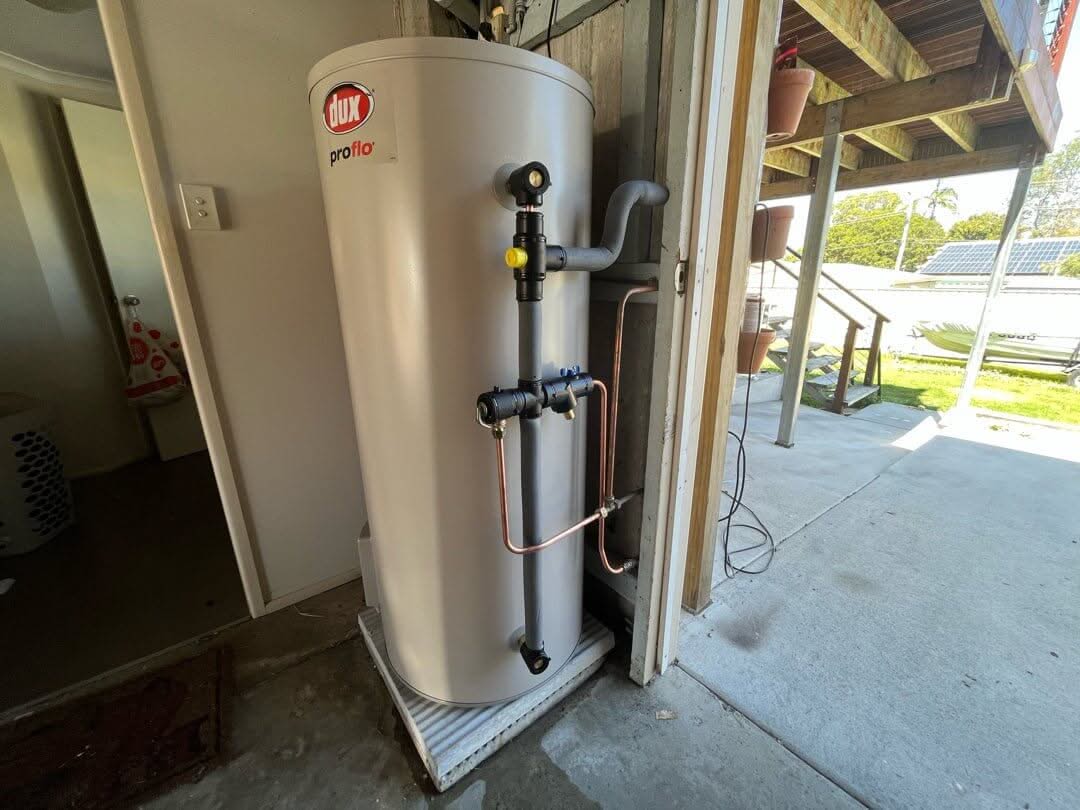

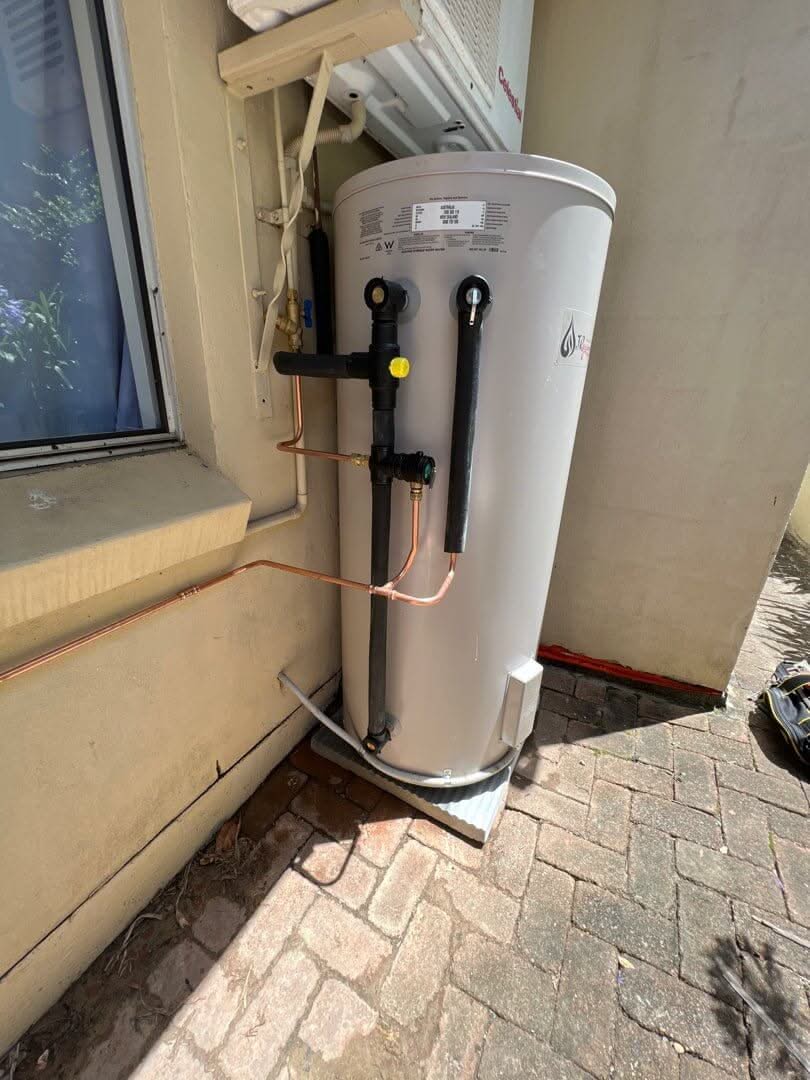

Dux Proflo 250L Installation Brisbane
Eligible Brisbane customers can order the Dux Proflo 250L with an installation option where available. Compatible like-for-like replacements are generally more straightforward where the existing location, plumbing, drainage, valves and electrical circuit already suit the new system.
The current tank is approximately 1445mm high × 660mm overall diameter and weighs 72kg empty, so physical access to the installation position should be checked before ordering.
Additional work may be required where valves need upgrading, pipework or drainage needs alteration, electrical work is required, the tank is being relocated or access is restricted.
GOLD COAST INSTALLATION
Dux Proflo 250L Installation Gold Coast
Eligible Gold Coast customers can also check supplied-and-installed options for the Dux Proflo 250L.
Before installation, confirm that the existing electrical supply suits the 3.6kW 250T1, that the supporting base is suitable and that the plumbing, valves, drainage and access meet current requirements.
WHAT MAY REQUIRE EXTRA WORK
Check These Items Before Ordering Installation
- Relocating the system from its existing position
- Old, damaged or non-compliant valves
- Additional hot or cold pipework
- Changes to relief-valve or safe-tray drainage
- Electrical circuit or switchboard work
- Restricted site access
- New supporting base requirements
- Safe tray installation where required indoors
- Delivery-temperature or tempering upgrades
- Removal and disposal of the old water heater
MAINTENANCE
Dux Proflo 250L Maintenance
Dux recommends regular servicing to help extend water-heater life and maintain safe operation.
The owner's manual specifies a six-month service involving operation of the Pressure & Temperature Relief valve easing lever and, where fitted, the expansion-control valve.
Dux also recommends a five-year service by a licensed tradesperson. In locations where Total Dissolved Solids exceed 600 mg/L, this service is recommended every 3 years.
The major service includes replacing the PTR valve and sacrificial anode, inspecting and flushing the expansion-control valve where fitted, draining and flushing the water heater and inspecting relevant electrical components.
WARRANTY
Dux Proflo 250L Warranty
Dux warranty coverage varies according to the type of property in which the water heater is installed.
| Application | Tank Warranty | Parts & Labour |
|---|---|---|
| Single Family Dwelling | 10 years | 1 year |
| All Other Applications | 3 years | 1 year |
Dux states that the warranty period commences from the installation date where proof is available, or from the manufacturing date if proof of installation date cannot be provided.
The 10-year tank warranty should not be assumed to apply to every rental, commercial, multi-residential or other application. Dux's complete warranty terms determine coverage.
COMMON QUESTIONS
Questions About the Dux Proflo 250L
What is the current Dux Proflo 250L model?
The current model listed by Dux is the 250T1.
How much water does the Dux Proflo 250L actually store?
Dux's January 2026 product guide specifies an actual storage capacity of 259 litres and a hot-water delivery rating of 250 litres.
How many people is the Dux Proflo 250L suitable for?
Dux lists the Proflo 250L for approximately 3–5 people, depending on household usage and tariff conditions.
What size element does the Dux Proflo 250L use?
The current 250T1 is specified with a 3.6kW element.
What electrical supply does the Dux Proflo 250L use?
Dux's current Proflo specifications state that the large electric range operates on 240V AC single-phase electricity.
Can the Dux Proflo 250L be installed outside?
Yes. Dux lists the 250L Proflo for indoor or outdoor installation where the location meets installation requirements.
Can it be installed indoors?
Yes. Indoor installation is permitted, but a properly drained safe tray is required where water leakage could cause property damage.
Does the Dux Proflo 250L provide mains-pressure hot water?
Yes. Dux specifies full-flow pressure to all outlets across the Proflo large electric range.
What are the Dux Proflo 250L dimensions?
The current Dux product guide lists approximately 1445mm overall height × 660mm overall diameter. The tank itself is approximately 620mm diameter.
How heavy is the Dux Proflo 250L?
Dux lists an empty weight of approximately 72kg. The operating weight is substantially greater once filled with water, so a suitable supporting surface is required.
What is the maximum inlet water pressure?
Dux specifies a maximum direct inlet pressure of 800 kPa for the 250L model.
What pressure is the relief valve?
Dux specifies a 1000 kPa relief valve pressure for the 250T1.
Does the Dux Proflo 250L have water connections on both sides?
Yes. Dux describes the Proflo range as dual-handed, with water connections on both sides of the cylinder to help with replacement installation.
Does the Dux Proflo 250L have thick insulation?
Yes. Dux specifies 50mm thick dense foam insulation for the large Proflo electric storage range.
Is the Dux Proflo 250L made in Australia?
Yes. Dux states that its 80L–400L Proflo large electric water heaters are manufactured in Australia.
Does the Proflo 250L have a hard-water option?
Yes. Dux lists a hard-water option and publishes specific sacrificial anodes for different water conditions.
Does the Dux Proflo 250L require professional installation?
Yes. Dux states that the water heater must be installed by a licensed tradesperson in accordance with applicable plumbing and electrical requirements.
How often should the Dux Proflo 250L be serviced?
Dux recommends a major service every 5 years, or every 3 years where Total Dissolved Solids exceed 600 mg/L. Dux also specifies a six-month PTR-valve service check.
What is the warranty on the Dux Proflo 250L?
For qualifying single-family dwelling installations, Dux specifies a 10-year tank warranty and 1-year parts-and-labour warranty. For all other applications, Dux specifies a 3-year tank warranty and 1-year parts-and-labour warranty.
Can I buy the Dux Proflo 250L supply only?
Yes. Installed Today offers the 250T1 as a supply-only option for customers who already have compliant licensed installation arranged.
Can Installed Today install the Dux Proflo 250L?
Supply-and-install options are available in selected Brisbane and Gold Coast service areas. Final installation requirements depend on access, plumbing, valves, drainage, electrical suitability, compliance requirements and old-system removal requirements.
WHY INSTALLED TODAY
Why Order the Dux Proflo 250L From Installed Today?
Supply Only
Unit Ordering
250T1
Current Model
Australia Wide
Supported Supply
Brisbane & Gold Coast
Installation Options
Installed Today provides a clear pathway to order the Dux Proflo 250L as a product-only purchase or combine it with an eligible local installation option. Confirm the existing electrical circuit, plumbing, valves, drainage, access and removal requirements before checkout.
FINAL CHECK
Is the Dux Proflo 250L Right for You?
The Dux Proflo 250L is suited to households wanting a conventional electric storage system with a substantial 250L hot-water delivery rating and full mains-pressure operation. It is especially relevant when replacing an existing medium-to-large electric cylinder and retaining a straightforward electric storage arrangement.
Before ordering, confirm that the 250T1 3.6kW configuration, physical dimensions, available tariff, household demand and installation location are suitable. Choose supply only where compliant installation is already arranged, or check Installed Today's Brisbane and Gold Coast installation options.
Tempering Valve and Element Information
*Element size information:
All electric hot water units are supplied as standard with a 3.6kW element unless otherwise stated on the product page, invoice, or order confirmation.
If a different element configuration is requested, such as 1.8kW or 2.4kW, the hot water unit may still arrive with the standard 3.6kW element fitted from the manufacturer. The requested 1.8kW or 2.4kW element will be supplied separately with the order for installation by a suitably licensed electrical contractor or licensed electrical licence holder.
Any element changeover, electrical connection, disconnection, wiring, testing, or modification must be carried out by a licensed electrical contractor or licensed electrical licence holder. Elements must not be changed, connected, modified, or tested by an unlicensed person.
Alternative elements supplied for non-standard configurations may be generic replacement elements and may not be the same brand as the hot water unit unless specifically stated. Generic elements are supplied to suit the requested element size and electrical configuration, but final suitability must be checked by the licensed installer before installation.
1.8kW and 2.4kW elements supplied separately with a hot water unit include a 12-month supply-only parts warranty from the date of purchase, provided the element has been correctly installed by a licensed electrical contractor or licensed electrical licence holder and used under normal operating conditions.
This element warranty covers the replacement supply of the element only. It does not include labour, call-out fees, electrical work, plumbing work, fault finding, removal, reinstallation, testing, travel, downtime, damage caused by incorrect installation, or any other associated costs. Warranty may be declined where the element has been incorrectly installed, dry-fired, modified, damaged, connected to incorrect voltage or wiring, affected by power issues, used in unsuitable water conditions, or installed by an unlicensed person.
Proof of purchase, installer details, electrical licence details, photos, and/or return of the faulty element may be required before a warranty claim is approved.
**Tempering valve information:
Where a hot water system is capable of delivering water above 50°C, a compliant tempering valve must be installed to control the temperature delivered to personal hygiene fixtures such as showers, baths, basins, and bathroom outlets. This helps reduce the risk of scalding and assists with meeting plumbing compliance requirements.
A tempering valve blends hot and cold water to deliver a safer controlled outlet temperature to required fixtures. The hot water unit itself may store water at a higher temperature, but the water delivered to personal hygiene outlets must be controlled where required by plumbing regulations.
If your property already has a suitable, compliant tempering valve installed, your licensed plumber can assess whether it is appropriate for use with the new hot water system. Existing valves may not always be suitable due to age, condition, compliance requirements, valve type, location, or system compatibility.
If a compliant tempering valve is not already installed, or if the existing valve is unsuitable, one must be supplied and installed by a licensed plumber as part of the hot water installation.
Tempering valves are not automatically included with every supply-only hot water unit unless specifically selected, listed as included, or purchased as part of a suitable valve kit. If a tempering valve is required, please purchase the appropriate valve kit with your order or arrange for your licensed installer to supply and install the correct tempering valve on site.
It is the customer’s responsibility to ensure the installation is completed by appropriately licensed trades and that all required valves, fittings, electrical work, plumbing work, and compliance requirements are allowed for as part of the installation.
A Simpler Way to Buy Hot Water, Filters, Pumps and Plumbing Products
Buying a new hot water system, water filter, pump or plumbing product should be clear, simple and easy to organise.
Installed Today helps you compare products, check supply-only pricing and, where available, build an optional installation package before checkout. That means you can choose the product, review the available options and order with more confidence, without the usual back and forth just to understand the starting price.
Whether you already know exactly what you need or you are still comparing options, Installed Today gives you a clearer way to buy the right product for your home, budget and timing.
Why Customers Choose Installed Today
Supply Only or Optional Installation
Choose the product on its own, or add installation where available on selected products and in eligible service areas. This gives you the flexibility to order the way that suits you best.
Clear Pricing Before Checkout
See the product price upfront, then review available installation options and common add-ons before placing your order. You can check the package total before checkout, instead of waiting on basic pricing just to get started.
Product Details That Actually Help
Key specs, sizing details, warranty information, product features and suitability notes are shown clearly, making it easier to compare products properly before you buy.
Common Installation Add-Ons Available
Where relevant, you can add common installation extras such as valve kits, bases, access-related items, removal, electrical options or other site-specific upgrades before checkout.
Built Around Brisbane and Gold Coast Homes
Our product and installation options are selected with common Brisbane and Gold Coast homes in mind, including local water quality, access issues, plumbing layouts, replacement requirements and typical installation conditions.
One Simple Order
Add the product and selected options to cart in one order, instead of trying to organise separate suppliers, installers, parts and payments yourself.
Practical Help Before You Buy
Not sure which size, model or installation option is right? Installed Today gives you a clearer path to compare your options before you order.
Designed to Make Your Decision Easier
Installed Today is built for customers who want a faster, clearer and more convenient way to buy.
Instead of guessing what is included, waiting for basic pricing or trying to work out which extras may be needed, you can review the product, compare your options and move forward with confidence.
Choose supply only if you just need the product.
Choose an optional supplied and installed package where installation is available and you want the product and selected install options organised in one order.
Add common extras before checkout if your job needs additional parts, removal, access support or site-specific options.
It is a simpler way to organise the product, the selected extras and the parts of the job that matter most.
Important Installation Note
Installation availability, inclusions and add-ons vary by product type, service area, site access, existing services, selected options and property requirements.
Some jobs may require additional work, upgrades or checks before installation can proceed. Final suitability may need to be confirmed based on site conditions, plumbing, electrical requirements, valves, drainage, access and compliance requirements.
Supply-only orders do not include installation, old unit removal, disposal, valve kits, electrical work, plumbing alterations or compliance upgrades unless these are clearly selected or included in your order.
Fast Delivery and Install-Aligned Shipping
Installed Today makes delivery simple, whether you are ordering supply-only or choosing an optional install package.
For supply-only orders, you can select from available delivery options at checkout. For eligible orders with installation selected, shipping is included and coordinated to align with your selected installation period where possible.
Delivery Options
Same Day Delivery
Same day delivery may be available for selected hot water systems in Brisbane and Gold Coast metro areas when ordered before 7:00am.
Availability depends on stock, courier capacity, delivery location, product type and safe transport conditions.
Express Delivery
Express delivery is available on selected products and locations, with an estimated delivery timeframe of 1–4 business days.
Standard Delivery
Standard delivery is available on selected products, with an estimated delivery timeframe of 2–8 business days.
Free Shipping with Installation
When you select an eligible installation package, delivery is included as part of the supplied and installed order.
Your product delivery will be organised to align with your selected installation period where possible, helping avoid separate courier timing, storage issues or delays between delivery and installation.
Fast Metro Delivery
Most hot water orders in metro areas are delivered quickly, with many arriving within 1 business day depending on stock, location, order time and courier availability.
Weather and Transport Delays
Hot water systems are large, heavy products and cannot always be transported safely during rain or unsafe handling conditions.
Delivery timeframes may be affected if wet weather impacts loading, unloading, transport access or safe delivery conditions.
Express Delivery Refund
If your express delivery order takes longer than the estimated 1–4 business day express timeframe, your order will move to the standard 2–8 business day delivery timeframe and your express shipping charge will be refunded automatically.
Order Tracking
We will send your delivery details once your order has been dispatched or scheduled.
For supplied and installed orders, delivery timing may be coordinated around your selected installation period rather than sent as a separate courier-only delivery.
Need Help with Delivery?
Not sure whether to choose supply-only delivery or an optional install package? Contact our team before ordering and we can help you understand the best option for your product, location and timing.
INSTALLED TODAY · LOCAL INSTALLATION AREAS
Hot Water Installation Areas
View all hot water service areas
Recently viewed
