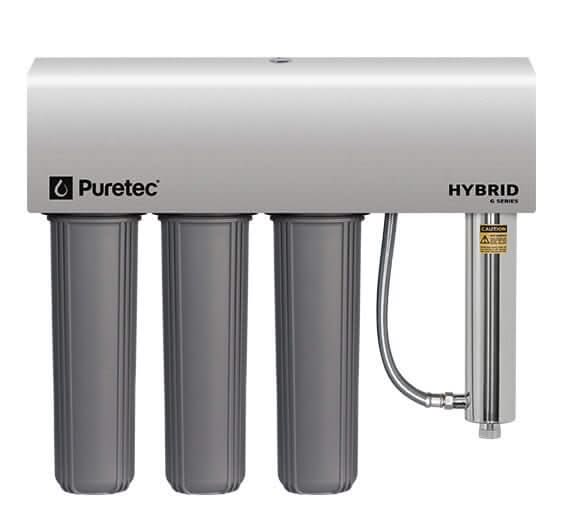

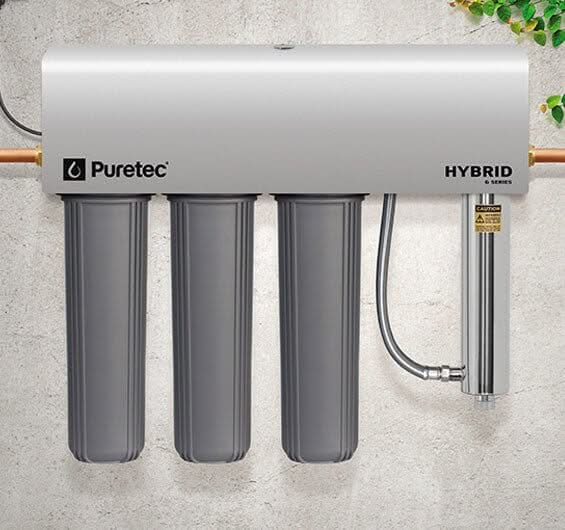

The Puretec Hybrid G13 is a premium whole-house filtration and ultraviolet treatment system designed to provide filtered and UV-treated water throughout a property. Rather than being a small inline drinking-water filter, the Hybrid G13 is installed on the main water line and combines three large 20-inch filtration stages with Puretec ultraviolet technology in one weather-protected system.
The current HYBRID-G13-LF uses a PL05MP2 5 micron sediment cartridge, a CB05MP2 5 micron carbon block cartridge and a PX01MP2 1 micron fine sediment cartridge, followed by an RL6 46W UV lamp. Puretec designs the G13 primarily for rainwater while also listing it for mains-water applications.
Installed Today offers the Puretec Hybrid G13 as a supply-only whole-house filtration system, with supplied-and-installed options available across eligible Brisbane and Gold Coast service areas.
The Hybrid G13 treats water before it is distributed throughout the property. Water first passes through three dedicated filtration cartridges before entering the ultraviolet chamber.
The filtration stages reduce sediment, dirt, rust, chlorine, unwanted taste and odour. The final UV stage then exposes the filtered water to ultraviolet light without adding treatment chemicals.
Puretec states that its Hybrid G13 UV technology is highly effective against microorganisms including E. coli, Giardia and Cryptosporidium cysts when the system is operated within its specified conditions.
The G13 uses large 20-inch MaxiPlus cartridges and is designed for higher-demand whole-house applications.
Puretec specifically designs the Hybrid G Series for rainwater systems where filtration and UV treatment are required before household distribution.
The system treats the main water supply rather than a single drinking-water outlet, giving downstream taps access to filtered and UV-treated water.
The first and third filtration stages reduce sediment, dirt, rust, sand, silt, algae and other suspended particles.
The CB05MP2 activated carbon block cartridge is designed to reduce chlorine, unwanted taste, odour and sediment.
The UV stage provides chemical-free ultraviolet treatment for microorganisms including E. coli, Giardia and Cryptosporidium cysts under suitable operating conditions.
*Puretec specifies 1 year parts and labour plus a further 2 years parts only. Consumable cartridges, UV lamps and other consumables are subject to the manufacturer's warranty conditions.
You want whole-house filtration and ultraviolet treatment in one weather-protected unit for a rainwater or suitable mains-water supply.
You only need drinking-water filtration at one kitchen tap, need an integrated pump, or require specialised treatment for hardness, salinity, fluoride or other contaminants not targeted by the standard G13 configuration.
Confirm water quality, UV transmittance where required, household flow demand, available pressure, electrical supply, installation location and whether a separate pressure pump is required.
No. The Hybrid G13 is a whole-house point-of-entry filtration and UV system. It is not a small under-sink carbon filter and it does not connect directly to a single existing kitchen mixer as its primary application.
The G13 is installed on the main water line so filtered and UV-treated water can be supplied to downstream outlets throughout the property.
This makes it substantially different from Puretec's under-sink drinking-water systems, which treat only a dedicated kitchen outlet or mixer connection.
The Hybrid G13 uses three filtration stages followed by ultraviolet treatment.
The PL05MP2 5 micron pleated sediment cartridge reduces larger suspended particles before the water reaches the carbon stage.
The CB05MP2 5 micron carbon block cartridge reduces chlorine, unpleasant taste, odour and additional sediment.
The PX01MP2 graded polyspun cartridge provides final nominal 1 micron sediment filtration.
The RL6 46W UV lamp treats the filtered water using ultraviolet light before it enters the property's plumbing system.
Puretec's Hybrid G13 uses ultraviolet treatment as a chemical-free microbiological treatment process. Puretec states that the system can achieve up to 99.9% reduction of E. coli, Giardia and Cryptosporidium cysts under appropriate water-quality and operating conditions.
UV performance depends on the clarity and UV transmittance of the incoming water. Sediment, dissolved iron, manganese, hardness and other water-quality factors can reduce the effectiveness of ultraviolet treatment if they are outside suitable limits.
Puretec specifically notes that where the clarity of rainwater is uncertain, a UV transmittance test may be required to establish whether additional pre-treatment is necessary.
Puretec publishes several flow figures for the Hybrid G13 because UV effectiveness depends on the ultraviolet dose delivered at a particular flow rate.
| UV Dose | Published Flow Rate | What It Means |
|---|---|---|
| 40 mJ/cm² | 54 L/min | Higher UV dose at a lower flow rate. |
| 30 mJ/cm² | 70 L/min | Puretec identifies 30 mJ/cm² as the industry-standard UV dose for drinking water in its G Series documentation. |
| 16 mJ/cm² | 130 L/min | Lower UV dose at a higher flow rate. |
| G13 Headline Rating | 120 L/min | Puretec's product literature also describes the G13 as the 20-inch Hybrid model with a maximum headline flow rating of 120 L/min. |
System sizing should be based on the required UV dose and actual household flow rather than relying on the headline maximum-flow figure alone.
Combines three 20-inch filtration stages and ultraviolet treatment into one whole-house system.
The Hybrid G Series incorporates a weather cover and anti-corrosion construction for suitable outdoor installations.
An anti-tamper and childproof lockable lid helps protect the UV and filtration components from unauthorised access.
The system includes a lamp countdown function to help track UV-lamp replacement timing.
The UV controller provides audible and visual status alerts to indicate operating faults.
Puretec uses a durable aluminium mounting bracket designed for long-term outdoor filtration installations.
| Specification | Details |
|---|---|
| Brand | Puretec |
| Product | Hybrid G13 Triple Stage Whole House Filtration & UV System |
| Current Model | HYBRID-G13-LF |
| Application | Whole-house / point-of-entry filtration and UV treatment |
| Primary Water Source | Rainwater |
| Other Listed Water Source | Mains water |
| Filtration Stages | 3 filtration stages plus UV |
| Final Micron Rating | 1 micron nominal |
| Stage 1 Cartridge | PL05MP2 – 5 micron pleated sediment cartridge |
| Stage 2 Cartridge | CB05MP2 – 5 micron carbon block cartridge |
| Stage 3 Cartridge | PX01MP2 – 1 micron polyspun sediment cartridge |
| Cartridge Size | 4.5" × 20" MaxiPlus |
| UV Lamp | RL6 – 46W |
| Quartz Sleeve | RQS6 |
| Flow at 40 mJ/cm² | 54 L/min |
| Flow at 30 mJ/cm² | 70 L/min |
| Flow at 16 mJ/cm² | 130 L/min |
| Headline G13 Flow | 120 L/min |
| Connection | 1" BSP / 25mm |
| Supply Pressure | 300–875 kPa; pressure limiting required where applicable |
| Water Temperature Range | 0–52°C, protect from freezing |
| Approx. Dimensions | 760mm high × 866mm wide × 211mm deep |
| Electrical Requirement | Electrical power required for the ultraviolet system |
| Weather Protection | Protective cover designed for suitable outdoor installation |
| Manufacturer Warranty | 3 years — 1 year parts and labour plus 2 years parts only |
A 20-inch MaxiPlus pleated sediment cartridge rated at 5 micron for first-stage particle reduction.
A 5 micron carbon block cartridge designed to reduce chlorine, sediment, unwanted taste and odour.
A 20-inch graded polyspun sediment cartridge rated at a nominal 1 micron for final fine-particle filtration.
The Hybrid G13 uses the Puretec RL6 46W ultraviolet lamp together with the Puretec RQS6 quartz sleeve.
The quartz sleeve separates the UV lamp from the water and must remain sufficiently clean for ultraviolet light to pass through effectively.
Mineral, iron or biological deposits can accumulate on the quartz sleeve over time, particularly where the incoming water quality is outside Puretec's recommended parameters.
Puretec specifies the HR-G13R11P maintenance kit for the Hybrid G13.
Puretec's Hybrid Series operating guide specifies replacing the filter cartridges every 6 months to maintain water quality and filtration performance.
The UV lamp must be replaced annually to maintain the manufacturer's specified microbiological performance. UV output gradually decreases with lamp age even when the lamp still appears to be illuminated.
The quartz sleeve should also be inspected and cleaned as required, with replacement where damaged, permanently stained or included as part of the scheduled maintenance kit.
The G13 is a whole-house point-of-entry system and requires appropriate plumbing, mounting and electrical provision.
The G13 is approximately 760mm high, 866mm wide and 211mm deep.
Puretec's Hybrid installation documentation also shows the need for generous servicing clearance, including approximately 700mm clearance for lamp access and at least approximately 120mm clearance from the ground for the G13 installation arrangement.
These service clearances are important because the cartridges, UV lamp and quartz sleeve need to remain accessible throughout the life of the system.
Yes. One of the defining features of the Hybrid G Series is its weather protection cover, anti-corrosion construction and lockable protective lid for suitable outdoor installations.
The system is designed for harsh climatic conditions, but installation location still needs to follow Puretec's requirements, including protection from freezing and avoiding conditions outside the product's specified environmental limits.
Yes. The Hybrid G13 contains an ultraviolet treatment system and therefore requires electrical power for the UV lamp and controller.
The original claim that the G13 operates with no power is not applicable to this model. If electrical power is lost, the UV treatment stage is no longer operating normally even though water may still be present in the plumbing system.
The audible and visible system alarms help provide operating-status information for the UV system.
Three 20-inch MaxiPlus filter housings with the PL05MP2, CB05MP2 and PX01MP2 cartridge configuration.
Integrated UV treatment stage using the RL6 46W lamp and RQS6 quartz sleeve, with countdown timer and audible and visible alarm functions.
Weather protection cover, high-strength aluminium mounting bracket and anti-tamper lockable hinged lid.
Choose supply only if you need the Puretec Hybrid G13 supplied and already have suitable licensed plumbing and electrical installation arrangements in place.
Eligible Brisbane customers can check available supplied-and-installed options for the Hybrid G13 whole-house filtration and UV system.
Eligible Gold Coast customers can also confirm available installation options, site requirements, water pressure and existing rainwater-system configuration before ordering.
Installed Today offers supply-only ordering for the Puretec Hybrid G13 across supported Australian delivery areas. Brisbane and Gold Coast customers can also check available supplied-and-installed options.
Customers elsewhere can order the system for delivery where available and arrange compliant local plumbing and electrical installation.
Brisbane customers can order the Puretec Hybrid G13 with installation options where available. A typical installation involves integrating the G13 into the property's main water line, securely mounting the filtration assembly, providing suitable isolation and pressure controls and ensuring electrical power is available for the UV system.
For rainwater properties, pump performance, available pressure, pipework, water quality and required household flow should be assessed before installation.
Eligible Gold Coast customers can also order the Hybrid G13 with a matching installation option. The chosen location should provide enough space for the complete 20-inch filtration assembly while maintaining access for cartridges, the UV lamp and quartz sleeve.
Where water quality is uncertain, additional testing or pre-treatment may be required before relying on the ultraviolet stage for microbiological treatment.
No. The Hybrid G13 is a whole-house filtration and UV system installed at the main water line.
It has three cartridge filtration stages followed by ultraviolet treatment.
The G13 uses the PL05MP2, CB05MP2 and PX01MP2 cartridges.
The final PX01MP2 filtration stage has a nominal rating of 1 micron.
Yes. The CB05MP2 carbon block cartridge is designed to reduce chlorine, unwanted taste and odour.
Yes. Puretec states that its ultraviolet system is highly effective against microorganisms including E. coli, Giardia and Cryptosporidium cysts when operated under appropriate conditions.
The Hybrid G13 uses the Puretec RL6 46W UV lamp.
The G13 uses the Puretec RQS6 quartz sleeve.
Puretec publishes 70 L/min at 30 mJ/cm² and identifies 30 mJ/cm² as the industry-standard drinking-water dose in its Hybrid G Series documentation.
Puretec's product literature describes the G13 as its 20-inch Hybrid model with a 120 L/min headline maximum-flow rating. UV documentation separately publishes flow rates at specific UV doses, which should be considered when sizing the system.
The system uses 1-inch BSP / 25mm connections.
Yes. Rainwater is the primary application for the Puretec Hybrid G Series.
Yes. Puretec also lists the Hybrid G13 for suitable mains-water applications.
Yes. It incorporates a weather protection cover, anti-corrosion construction and lockable lid for suitable outdoor installations.
Yes. Electrical power is required for the ultraviolet lamp and controller.
The standard Hybrid G13 is the filtration and UV package and does not include the integrated pump arrangement found in Puretec's HybridPlus pump models.
Puretec's Hybrid Series user guide specifies replacing the filter cartridges every 6 months.
Puretec specifies replacing the UV lamp every 12 months to maintain the stated UV performance.
The correct Puretec maintenance kit is the HR-G13R11P.
Yes. Puretec specifies both audible and visible alarms together with a lamp countdown timer.
Puretec describes the cover as having an anti-tamper and childproof lockable lid.
Yes. Installed Today offers the Hybrid G13 as a supply-only product where compliant installation is being arranged separately.
Installation options are available across eligible Brisbane and Gold Coast service areas. Final installation requirements depend on the water source, existing pump and pipework, available pressure, electrical supply and installation location.
Puretec specifies a total 3-year manufacturer warranty for the Hybrid G13, consisting of 1 year parts and labour followed by a further 2 years parts only.
Consumable filtration cartridges, lamps and other maintenance components are subject to Puretec's applicable warranty exclusions and service requirements.
Installed Today gives you a straightforward way to order the Puretec Hybrid G13 as a supply-only purchase or check eligible local installation options, with access to genuine replacement filters, UV lamps, quartz sleeves and the complete HR-G13R11P maintenance kit.
The Puretec Hybrid G13 is suited to properties wanting filtration and ultraviolet treatment across the whole water supply rather than only at a kitchen tap. Its three 20-inch filtration stages reduce sediment, chlorine, taste and odour before water passes through the UV treatment chamber.
It is particularly relevant to medium-to-large rainwater properties where microbiological treatment is required and the water quality is suitable for UV. If you need an integrated pump, smaller under-sink filtration or treatment for specific dissolved contaminants, another Puretec system may be more appropriate.
