PURETEC UNDERSINK WATER FILTRATION
Puretec TS100 Dual Undersink Water Filter System with High-Loop Faucet
The Puretec TS100 is a dual-stage undersink drinking-water filtration system designed for mains and town water. It combines sediment and carbon filtration with a dedicated Puretec DFU180 high-loop chrome faucet, providing filtered drinking water separately from your normal kitchen mixer.
The current TS100-LF uses a PX051 sediment cartridge followed by a GC051 granular carbon cartridge. Together they reduce sediment, rust, dirt, chlorine, chemicals, unpleasant taste and odour while retaining essential minerals.
Installed Today offers the Puretec TS100 as a supply-only filtration system, with supplied-and-installed options available across eligible Brisbane and Gold Coast service areas.
Puretec TS100 at a glance: a twin undersink mains-water filter with a dedicated high-loop faucet, nominal 5 micron filtration, maximum 4 L/min flow and two replaceable cartridges. Stage 1 targets sediment such as dirt, rust, sand and silt, while Stage 2 uses granular carbon to reduce chlorine, chemicals, unpleasant tastes and odours.
WHAT IT DOES
What Does the Puretec TS100 Do?
The TS100 filters cold mains or town water before it reaches its dedicated drinking-water faucet. Water passes through two separate cartridges so larger sediment is treated first before the water moves through the carbon filtration stage.
This dual-stage arrangement is designed to improve drinking-water clarity, taste and odour while helping protect the second-stage cartridge from unnecessary sediment loading.
WHO IT SUITS
Who Is the Puretec TS100 Best For?
Mains & Town Water Homes
Puretec specifically designs the TS Series for homes and workplaces supplied by treated metropolitan, mains or town water.
Dedicated Drinking Water
Suitable for kitchens where filtered drinking and cooking water is wanted from a separate dedicated faucet.
Dual-Stage Filtration
A practical option where both sediment reduction and chlorine, chemical, taste and odour reduction are required.
WHAT IT HELPS SOLVE
What Water Problems Can the Puretec TS100 Help With?
Sediment, Rust & Dirt
The first-stage PX051 polyspun cartridge is designed to reduce dirt, rust, sand, silt, algae and other suspended particles.
Chlorine & Chemical Taste
The second-stage GC051 granular carbon cartridge reduces chlorine, volatile chemicals and pesticides that can affect drinking-water taste and odour.
Unpleasant Taste & Odour
Granular carbon filtration provides extended contact with the water to improve taste and reduce unwanted odours.
PRODUCT AT A GLANCE
Puretec TS100 Key Details
2 Stage Undersink Filtration
5 Micron Nominal Rating
4 L/min Maximum Flow
3 Years Manufacturer Warranty*
*Puretec specifies 1 year parts and labour plus a further 2 years parts only. Consumable filter cartridges are excluded.
PRODUCT SUITABILITY
Is the Puretec TS100 Right for My Home?
A Good Choice If...
You have mains or town water and want a dedicated undersink drinking-water filter that targets sediment, chlorine, chemicals, taste and odour.
Consider Another Option If...
You need finer filtration than the TS100's nominal 5 micron rating, whole-house filtration, or treatment for untreated microbiologically unsafe water.
Check Before Ordering
Confirm available undersink space, water pressure, cold-water connection, suitable faucet position and whether a 12.5mm faucet hole can be provided.
IMPORTANT WATER SOURCE INFORMATION
What Water Supply Is the Puretec TS100 Designed For?
The TS100 is primarily designed for mains and town water. Puretec states that its undersink TS systems can be used in other situations, but other water sources should be assessed separately to determine the appropriate treatment requirements.
The TS100 should not be used with microbiologically unsafe water or water of unknown quality without adequate disinfection before or after the system.
If your property uses untreated rainwater, bore water, dam water or another non-mains source, select a filtration and disinfection system designed for that water source rather than assuming the TS100 alone is suitable.
HOW IT WORKS
How Does the Puretec TS100 Work?

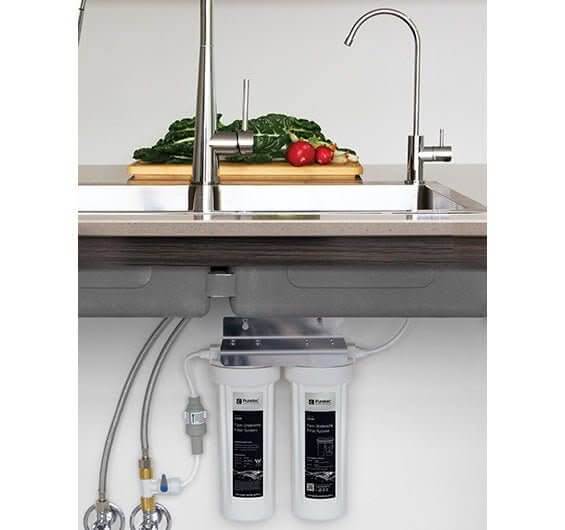

Cold water is diverted from the kitchen's cold-water supply through the TS100 filtration housings before being delivered to the dedicated DFU180 faucet.
1. Sediment Filtration
Water first passes through the PX051 5 micron polyspun sediment cartridge to reduce dirt, rust, sand, silt, algae and suspended particles.
2. Granular Carbon Filtration
Water then passes through the GC051 granular carbon cartridge to reduce chlorine, unwanted taste, odour, volatile chemicals and pesticides.
3. Dedicated Faucet
Filtered water is delivered through the included Puretec DFU180 high-loop faucet for drinking, cooking and filling bottles or containers.
KEY FEATURES
Key Features of the Puretec TS100
Dual-Stage Filtration
Two separate cartridges divide sediment removal and carbon filtration between dedicated filtration stages.
High-Loop DFU180 Faucet
The system includes Puretec's chrome high-loop drinking-water faucet for a dedicated filtered-water outlet.
Multifunction Control Valve
Puretec includes a chrome-plated brass control valve incorporating pressure reduction, anti-water-hammer and dual-check functions.
Ribbed Filter Housings
The twin filter housings use a ribbed design intended to provide additional housing durability.
Essential Minerals Retained
The TS Series filtration process is designed to reduce targeted contaminants without removing essential minerals from the water.
Installation Kit Included
The system includes the plumbing installation fittings specified by Puretec for connection to a standard compatible cold-water supply.
TECHNICAL DETAILS
Puretec TS100 Specifications
| Specification |
Details |
| Brand |
Puretec |
| Product |
TS100 Dual Undersink Water Filter with Faucet |
| Current Model |
TS100-LF |
| Water Source |
Mains and town water |
| Filtration Stages |
2 |
| Nominal Micron Rating |
5 micron |
| Stage 1 Cartridge |
PX051 polyspun sediment cartridge |
| Stage 2 Cartridge |
GC051 granular carbon cartridge |
| Faucet Model |
DFU180 high-loop faucet |
| Maximum Flow Rate |
4 litres per minute |
| Operating Temperature |
0–30°C, protect from freezing |
| Operating Pressure |
300–500 kPa |
| Hose Connection |
¼" Quick Connect |
| Cold-Water Tee |
½" BSP / 15mm |
| Required Faucet Hole |
12.5mm diameter |
| Filter Assembly Size |
Approximately 280mm wide × 330mm high |
| Filter WaterMark |
AS/NZS 3497, Licence No. WM 74617 |
| Electrical Connection |
Not required |
| Drain Connection |
Not required |
| Manufacturer Warranty |
3 years — 1 year parts and labour plus 2 years parts only |
FILTER CARTRIDGES
What Replacement Filters Does the Puretec TS100 Use?
Stage 1 – PX051
The Puretec PX051 is a 5 micron polyspun sediment cartridge designed to reduce sediment, dirt, rust, sand, silt, algae and other suspended particles.
Stage 2 – GC051
The Puretec GC051 is a granular carbon cartridge designed to reduce chlorine, unwanted taste, odour, volatile chemicals and pesticides.
Use Genuine Replacements
Puretec specifies genuine replacement cartridges to maintain filtration performance and applicable manufacturer warranty conditions.
FILTER REPLACEMENT
How Often Do Puretec TS100 Filters Need Replacing?
Puretec specifies cartridge replacement every 6–12 months, depending on water quality and usage.
The TS Series user guide also states that cartridges should be changed at least every 8,000 litres or 6–12 months, whichever occurs first, or sooner if you notice a change in taste, odour or water flow.
Actual cartridge life can vary because sediment levels, chlorine concentration, organic substances and household water consumption differ between properties.
INSTALLATION REQUIREMENTS
What Is Required to Install the Puretec TS100?
The TS100 is installed beneath the sink and connects to the cold-water line only. The filter assembly should be positioned close to the dedicated faucet with adequate access for future cartridge servicing.
- Compatible cold-water supply
- 300–500 kPa operating pressure
- 0–30°C operating water temperature
- Suitable undersink mounting position
- 12.5mm hole for the dedicated faucet
- Access for filter bowl removal and cartridge changes
- Protection from freezing and direct sunlight
- Licensed plumbing installation in accordance with local regulations
Puretec's current user guide states that this product must be installed in accordance with local plumbing regulations by a licensed plumber.
INSTALLATION CLEARANCE
How Much Space Does the Puretec TS100 Need?
The twin-filter assembly is approximately 280mm wide and 330mm high. Puretec also instructs installers to allow room for tubing and at least approximately 50mm of clearance for removal of the filter bowls.
The faucet position should allow practical use above the sink and enough clearance for filling glasses, bottles and jugs.
WHAT'S INCLUDED

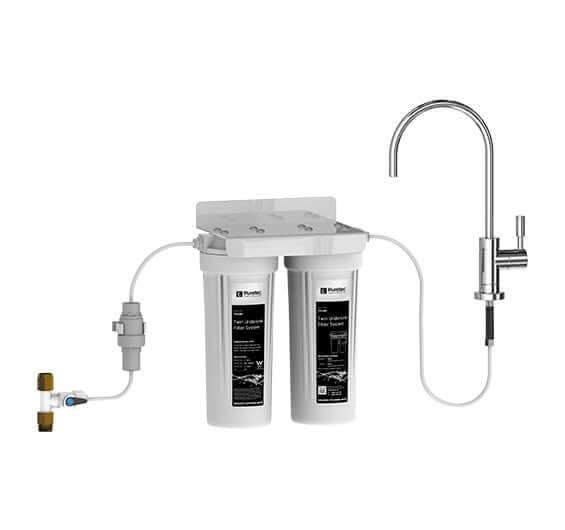

What's Included With the Puretec TS100?
Filtration System
Twin filter housing assembly with the PX051 sediment cartridge and GC051 granular carbon cartridge.
Dedicated Faucet
Puretec DFU180 high-loop faucet for delivering the filtered drinking-water supply separately from the normal kitchen mixer.
Installation Components
Puretec specifies an installation kit including the Smart Tee, tubing and multifunction pressure-limiting control valve for a compatible standard installation.
SUPPLY OR INSTALL
Choose How You Want to Order the Puretec TS100
Supply Only
Choose supply only if you need the Puretec TS100 supplied and already have a suitable licensed plumber or installation arrangement in place.
Brisbane Installation
Eligible Brisbane customers can check available supplied-and-installed options for the TS100 undersink drinking-water filtration system.
Gold Coast Installation
Eligible Gold Coast customers can also select available installation options and confirm any site-specific requirements before ordering.
AUSTRALIA-WIDE SUPPLY
Buy the Puretec TS100 Across Australia
Installed Today offers supply-only ordering for the Puretec TS100 across supported Australian delivery areas. Brisbane and Gold Coast customers can also check available supplied-and-installed options.
Customers outside the local installation area can order the filtration system for delivery where available and arrange compliant local installation.
Brisbane Gold Coast Sydney Melbourne Adelaide Perth
BRISBANE INSTALLATION
Puretec TS100 Supply & Installation Brisbane
Brisbane customers can order the Puretec TS100 with installation options where available. Installation involves connecting the system to a compatible cold-water supply, mounting the twin filter assembly beneath the sink and installing the dedicated high-loop drinking-water faucet.
The existing plumbing, water pressure, available cabinet space and preferred faucet position should be checked before installation. Alternative fittings or additional plumbing work may be required where the existing supply differs from the manufacturer's standard installation arrangement.
GOLD COAST INSTALLATION
Puretec TS100 Supply & Installation Gold Coast
Eligible Gold Coast customers can also order the TS100 with a matching installation option. The under-sink area should provide sufficient room for the filter assembly, tubing and future removal of the filter housings during cartridge changes.
Any additional plumbing alterations, cabinet modifications or non-standard connections should be identified before installation where possible.
MAINTENANCE
How Do You Maintain the Puretec TS100?
The primary ongoing maintenance requirement is regular replacement of both filter cartridges. Puretec recommends replacing the PX051 and GC051 cartridges every 6–12 months depending on water quality and usage, with an 8,000 litre maximum interval stated in the TS Series user guide.
After cartridge replacement, Puretec instructs users to flush the system for approximately 5–10 minutes. The installation should also be checked periodically for leakage, deterioration or other signs that servicing is required.
If the system has not been used for more than two days, Puretec recommends flushing it for approximately 10 minutes before use.
COMMON QUESTIONS
Questions About the Puretec TS100
What does the Puretec TS100 filter?
The TS100 is designed to reduce sediment, dirt, rust, sand, silt, chlorine, chemicals, unpleasant taste and odour from mains and town drinking water.
How many filtration stages does the TS100 have?
It has two filtration stages: a PX051 sediment cartridge followed by a GC051 granular carbon cartridge.
What micron rating is the Puretec TS100?
The current TS100 has a manufacturer-published nominal filtration rating of 5 micron.
What is the maximum TS100 flow rate?
Puretec specifies a maximum flow rate of 4 litres per minute.
What filters does the TS100 use?
The TS100 uses a PX051 cartridge for Stage 1 sediment filtration and a GC051 granular carbon cartridge for Stage 2 filtration.
How often should I replace the TS100 filters?
Puretec recommends replacement every 6–12 months depending on water quality and usage, with replacement at least every 8,000 litres or sooner if taste, odour or water flow changes.
Does the Puretec TS100 include a drinking-water tap?
Yes. The system includes the Puretec DFU180 high-loop faucet.
Does the TS100 require electricity?
No. Puretec's installation guide states that the TS100 has no electrical requirement.
Does the TS100 require a drain connection?
No. The TS Series installation guide states that no drainage connection is required.
What water pressure does the TS100 require?
The current Puretec installation guide specifies an operating range of 300–500 kPa. Where line pressure exceeds 500 kPa, an approved pressure-limiting device is required.
What temperature water can pass through the TS100?
The manufacturer specifies an operating range of 0–30°C. The system should be protected from freezing and installed on the cold-water supply.
What size hole is required for the TS100 faucet?
Puretec specifies a 12.5mm diameter hole for the included faucet.
Is the Puretec TS100 suitable for untreated rainwater?
The TS100 is designed primarily for mains and town water. Puretec warns against using the system with microbiologically unsafe water or water of unknown quality without adequate disinfection before or after filtration.
Does the TS100 remove essential minerals?
Puretec states that the TS Series filtration system does not remove essential minerals.
Does the TS100 include a pressure-limiting valve?
Yes. Puretec supplies a multifunction control valve incorporating pressure reduction, anti-water-hammer and dual-check functions.
Can I install the Puretec TS100 myself?
Puretec's current TS Series user guide states that the product must be installed in accordance with local plumbing regulations by a licensed plumber.
Can I buy the Puretec TS100 supply only?
Yes. Installed Today offers the TS100 as a supply-only product if you are arranging compliant installation separately.
Can Installed Today install the Puretec TS100?
Installation options are available across eligible Brisbane and Gold Coast service areas. The final scope depends on existing plumbing, cabinet access and the faucet installation location.
WARRANTY
Puretec TS100 Warranty
Puretec specifies a total 3-year manufacturer warranty for the TS100. This consists of 1 year parts and labour followed by a further 2 years parts only.
The warranty excludes consumable filter cartridges and is subject to Puretec's warranty conditions, including correct installation and use in accordance with the manufacturer's instructions.
WHY INSTALLED TODAY
Why Buy the Puretec TS100 From Installed Today?
Supply Only Filter Ordering
Genuine Filters Replacement Options
Australia Wide Supported Supply Areas
Brisbane & Gold Coast Installation Options
Installed Today gives you a straightforward pathway to order the TS100 as a product-only purchase or check eligible local installation options, with ongoing access to the genuine Puretec replacement cartridges required to maintain the system.
FINAL CHECK
Is the Puretec TS100 Right for You?
The Puretec TS100 is primarily suited to homes and workplaces with mains or town water that want a dedicated drinking-water faucet and straightforward dual-stage filtration for sediment, chlorine, chemicals, taste and odour. Its twin-housing design uses separate sediment and granular carbon cartridges and provides up to 4 L/min filtered-water flow.
If you need finer filtration, whole-house treatment or filtration and disinfection for untreated water, another Puretec system may be more appropriate. Choose supply only where compliant installation is already arranged, or check Installed Today's available Brisbane and Gold Coast installation options.
