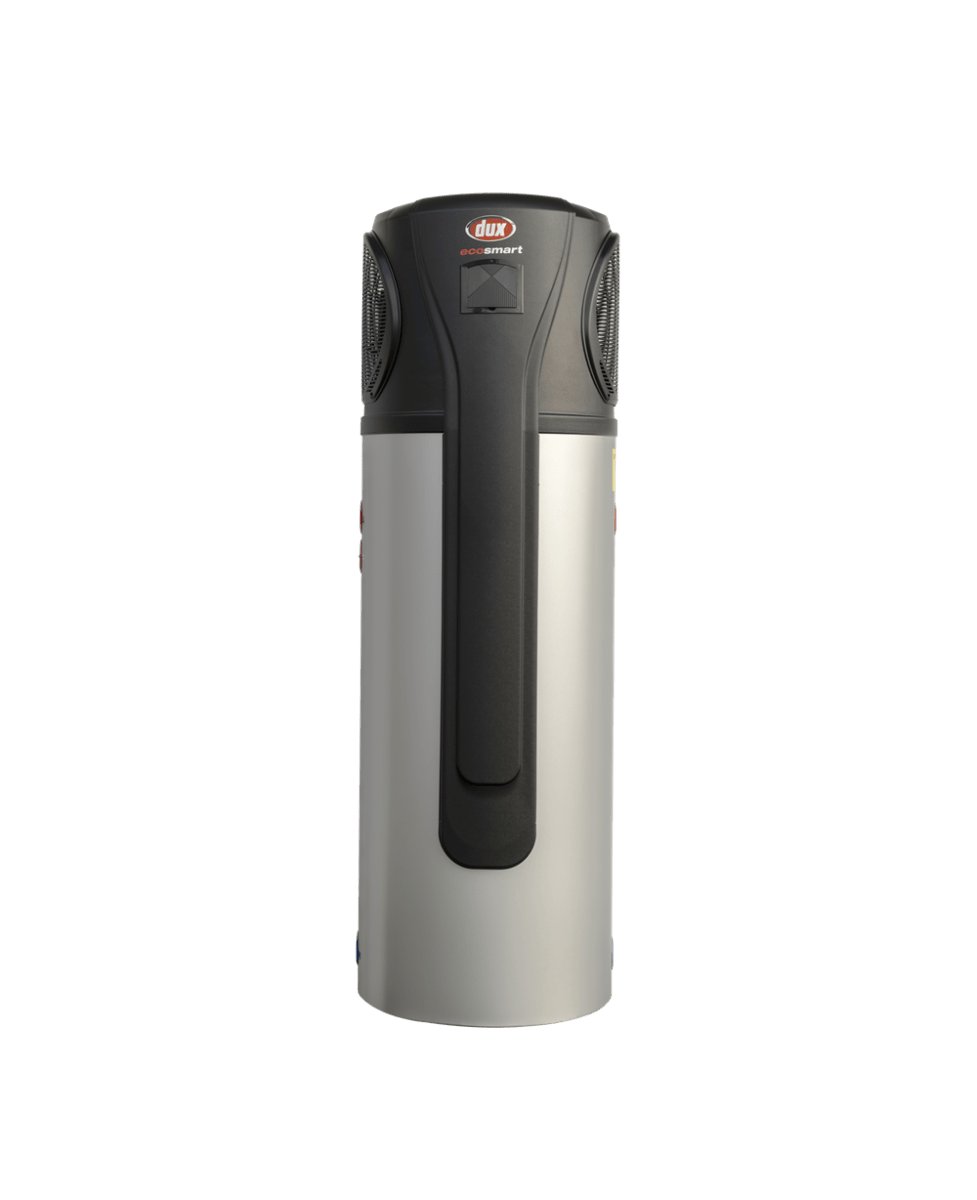

Dux Ecosmart Pro-Series 270L Heat Pump Hot Water System
The Dux Ecosmart Pro-Series 270L Heat Pump Hot Water System is a high-recovery heat pump designed for larger households wanting efficient stored hot water with strong recovery performance.
With a 270L storage capacity, R290 refrigerant, up to 77 litres per hour heat pump recovery under Dux test conditions, active defrost, touchscreen control and separate hardwired and plug-in variants, the Pro-Series is designed as an energy-efficient alternative to conventional electric storage hot water.
Installed Today offers the Dux Ecosmart Pro-Series 270L as a supply-only heat pump hot water system or with supplied-and-installed options across selected Brisbane and Gold Coast service areas, where available.
What Does the Dux Ecosmart Pro-Series 270L Do?
The Ecosmart Pro-Series uses heat from the surrounding air to heat water stored inside its 270L cylinder.
Instead of relying primarily on direct electric resistance heating, the heat pump refrigeration system captures ambient heat and transfers that energy into the stored water.
The system also includes an electric backup element for very low ambient conditions and boost operation, with the element size depending on whether the hardwired or plug-in model is selected.
Who Is the Dux Ecosmart Pro-Series 270L Best For?
Larger Households
Dux lists the 270L Pro-Series for households of up to 7 people on a continuous tariff, subject to actual hot water demand.
High Hot Water Users
The powerful compressor and published 77 L/hr heat pump recovery can suit homes where recovery speed is an important consideration.
Electric Hot Water Upgrades
The Pro-Series has a similar footprint to many electric water heaters it is designed to replace, although airflow, drainage and service access must still be checked.
Dux Ecosmart Pro-Series 270L Key Details
Dux states the 3.5-hour full-tank figure at 20°C ambient temperature when heating water from 20°C to 60°C. Actual recovery varies with ambient conditions, inlet temperature, settings and household demand.
Is the Dux Ecosmart Pro-Series 270L Right for My Home?
A Good Choice If...
You want a family-sized heat pump with fast recovery, touchscreen scheduling, R290 refrigerant and the choice of hardwired or 10A plug-in configurations.
Consider Another Option If...
Your household has low hot water demand or the property cannot provide suitable airflow, condensate drainage, electrical supply, base support or service access.
Check Before Ordering
Confirm whether you need the hardwired or plug-in model, household demand, dimensions, electrical supply, drainage, water pressure, delivery access and installation location.
How Many People Can the Ecosmart Pro-Series 270L Suit?
Dux lists the Pro-Series 270L for households of up to 7 people on a continuous tariff.
That figure is a sizing guide rather than a guarantee. Actual suitability depends on how much hot water the household uses and how quickly that demand occurs.
- Number of occupants
- Average shower duration
- Shower flow rates
- Number of bathrooms
- Bath usage
- Laundry and kitchen demand
- Timing of hot water demand
- Tariff configuration
- Ambient temperature
- Selected heating schedule
How Does the Dux Ecosmart Pro-Series 270L Work?
1. Heat Is Collected From the Air
The refrigeration circuit absorbs usable heat energy from the surrounding ambient air.
2. Heat Is Transferred to the Tank
The compressor and external wraparound condenser transfer that energy into the stored water.
3. Hot Water Is Stored
The heated water remains stored in the 270L cylinder until it is required throughout the property.
Key Features of the Dux Ecosmart Pro-Series 270L
Fast Heat Pump Recovery
Dux publishes heat pump recovery of up to 77 litres per hour under stated operating conditions.
Touchscreen Controller
A tank-mounted touchscreen provides access to scheduling and operating mode selection.
R290 Refrigerant
The system uses R290 natural refrigerant. Current Dux literature lists its refrigerant GWP as 3.
Wraparound Copper Condenser
The external copper condenser design keeps the condenser separate from direct contact with the stored water and supports use across a broad range of water qualities.
Active Defrost
Active defrost supports heat pump operation in colder climates by managing frost formation around the evaporator.
UV & Flame Resistant Housing
The polymer top housing is designed with UV and flame resistance for durability in Australian outdoor conditions.
Dux Ecosmart Pro-Series 270L Specifications
| Specification | 270DHB36 Hardwired | 270DHB36P Plug-In |
|---|---|---|
| Storage Capacity | 270L | 270L |
| Rated Heat Pump Heating Capacity | 3.6 kW | 3.6 kW |
| Rated Power Input | 3.48 kW | 2.1 kW |
| Rated Current Input | 14.5 A | 8.8 A |
| Electric Element Rating | 2.4 kW | 1.0 kW |
| Electrical Connection | Hardwired | 3m power cord for 10A GPO |
| Power Supply | 230–240 V / 50 Hz | 230–240 V / 50 Hz |
| Refrigerant | R290 | R290 |
| Refrigerant Charge | 680 g | 680 g |
| Net Weight | 114 kg | 114 kg |
| Maximum Refrigerant Circuit Pressure | 3200 kPa | 3200 kPa |
| Maximum Inlet Water Pressure | 800 kPa | 800 kPa |
| Relief Valve Rating | 1000 kPa / 10 kW | 1000 kPa / 10 kW |
| Water / PTR / Anode Connections | 3/4" / 20 mm | 3/4" / 20 mm |
| Condensate Drain | 3/4" / 20 mm | 3/4" / 20 mm |
| Heat Pump Ambient Operating Range | -5°C to +43°C | -5°C to +43°C |
| Rated Maximum Water Temperature | 60°C | 60°C |
Which Dux Ecosmart Pro-Series 270L Model Do I Need?
The Pro-Series is available in two electrical configurations. The heat pump section and 270L storage capacity are shared, but the electric backup element and electrical connection differ.
270DHB36 Hardwired
The hardwired model has a 2.4 kW electric element, listed rated input of 3.48 kW and rated current input of 14.5 A. It requires a compliant hardwired electrical connection.
270DHB36P Plug-In
The plug-in model has a 1.0 kW electric element, listed rated input of 2.1 kW and rated current input of 8.8 A. It is supplied with a 3m power cord for connection to a suitable 10A GPO.
Up to 77 Litres Per Hour Using the Heat Pump
Dux states that the Pro-Series can heat up to 77 litres of hot water per hour solely using heat pump operation under its specified test conditions.
Dux also publishes a full-tank heating time of approximately 3.5 hours at 20°C ambient temperature when heating water from 20°C to 60°C.
These figures are useful for comparing recovery capability, but real-world recovery changes with ambient temperature, incoming water temperature and system operation.
How Efficient Is the Dux Ecosmart Pro-Series 270L?
Dux's current Pro-Series literature states that the system can use up to 75% less energy than a standard electric water heater under its stated AS/NZS 5125.1 test conditions.
Dux also publishes a COP of 4.7 for the Pro-Series under stated test conditions.
Actual electricity use and savings depend on household demand, climate, incoming water temperature, tariff arrangement, operating schedule, electric boost use and the system being replaced.
Scheduling the Pro-Series Around Solar or Tariffs
The Pro-Series includes an intuitive tank-mounted touchscreen controller for scheduling and mode selection.
This allows heating periods to be planned around household routines and can be useful where the property has solar PV or time-of-use electricity pricing.
Scheduling does not directly connect the unit to a solar inverter. It allows the homeowner to select operating times that may better align with available solar generation or lower-cost tariff periods.
What Refrigerant Does the Dux Pro-Series Use?
The Ecosmart Pro-Series 270L uses R290 natural refrigerant with a charge of approximately 680 grams.
Current Dux product literature lists the refrigerant with a GWP of 3.
R290 is flammable, so refrigeration-related work must be performed by appropriately qualified personnel and the system must be installed in accordance with the manufacturer's requirements.
Can the Dux Ecosmart Pro-Series Operate in Cold Weather?
The heat pump has a published ambient operating range of approximately -5°C to +43°C.
Dux includes an active defrost function for colder climates, helping the refrigeration system manage frost formation during low-temperature operation.
The electric element can provide water heating outside the normal heat pump ambient operating range.

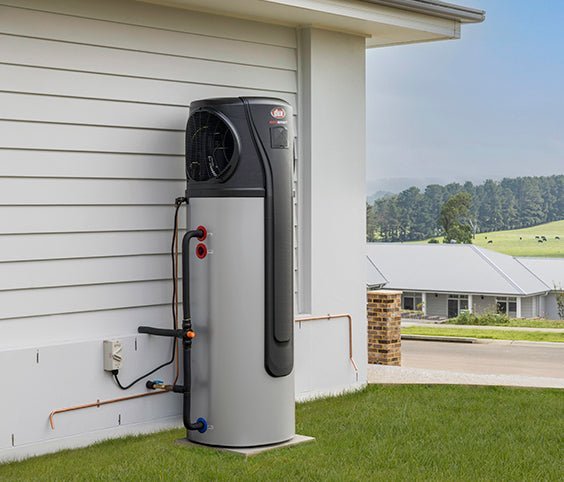

What Is Required to Install the Ecosmart Pro-Series 270L?
- Suitable heat pump installation position
- Stable and level supporting base
- Required airflow around the heat pump
- Suitable condensate drainage
- Suitable hot and cold water pipework
- Correct safety and pressure-control valves
- Incoming water pressure within requirements
- Relief-valve discharge drainage
- Correct hardwired or plug-in electrical arrangement
- Suitable circuit or 10A GPO for selected model
- Service and maintenance access
- Safe delivery and positioning access
Will the Dux Ecosmart Pro-Series 270L Fit?
The current Pro-Series dimensions are approximately 2010 mm high, 640 mm nominal diameter and 673 mm total depth including the top cover.
The listed inlet and drainage height is approximately 115 mm, while the hot water outlet height is approximately 1211 mm.
The system has a listed net weight of approximately 114 kg.
What Water Pressure Requirements Apply?
800 kPa Maximum Inlet
Dux lists a maximum inlet water pressure of 800 kPa.
1000 kPa Relief Valve
The system has a listed relief valve rating of 1000 kPa / 10 kW.
Existing Valves Matter
A replacement installation may require new pressure-control or safety valves where the existing arrangement is unsuitable or non-compliant.
Does the Dux Ecosmart Pro-Series Need a Drain?
Yes. Heat pump operation produces condensate, and the Pro-Series includes a dedicated condensate drain connection.
The installation position must allow condensate and hot water safety-valve discharge to be managed correctly. Additional drainage work may be required where a suitable discharge point is not already available.
Can the Pro-Series 270L Replace an Electric Storage Water Heater?
The Pro-Series is specifically positioned as an efficient alternative to conventional electric storage and has a similar footprint to many electric systems it is designed to replace.
A heat pump conversion is not automatically a direct tank swap because airflow, condensate drainage, electrical requirements and service access also need to be assessed.
Electric Storage Replacement
The 270L capacity and high recovery can suit selected family-sized electric storage replacements.
Changing Technology
Moving to a heat pump introduces airflow, condensate, refrigeration and operating-noise considerations.
Relocating the System
A new installation position can require extra pipework, drainage, electrical work, base preparation and labour.
What's Included With the Dux Ecosmart Pro-Series 270L?
Supply Only
Choose supply only if you already have suitable licensed trades arranged and simply need the selected Dux Pro-Series model supplied.
Supplied & Installed
Eligible Brisbane and Gold Coast customers can choose a supplied-and-installed option where service coverage and site conditions allow.
Possible Additional Work
Valve replacement, electrical work, drainage, pipework changes, base preparation, relocation, removal, disposal and difficult-access work may be additional.
Choose How You Want to Order the Dux Pro-Series 270L
Supply Only
Order the selected hardwired or plug-in Pro-Series model if you already have the required licensed trades arranged.
Brisbane Installation
Supply and installation may be available across selected Brisbane service areas, subject to site suitability and service coverage.
Gold Coast Installation
Supply and installation may be available across selected Gold Coast service areas, subject to site suitability and service coverage.
Buy the Dux Ecosmart Pro-Series 270L Across Australia
Installed Today can offer supply-only ordering to supported Australian locations, while eligible Brisbane and Gold Coast customers may also have supplied-and-installed options available.
Dux Ecosmart Pro-Series 270L Supply & Installation Brisbane
The Ecosmart Pro-Series 270L can suit Brisbane family homes and higher-demand properties replacing an electric storage water heater where the selected position provides suitable airflow, drainage, electrical supply and service access.
Before installation, the site should be checked for model selection, electrical configuration, dimensions, access, base condition, condensate drainage, valves, water pressure, pipework and old-system removal requirements.
Dux Ecosmart Pro-Series 270L Supply & Installation Gold Coast
Gold Coast customers may be able to order the Pro-Series 270L with installation where service coverage and site conditions allow.
The combination of 270L storage and strong heat pump recovery can make the system relevant to family homes, investment properties and households with higher hot water demand.
Is the Dux Ecosmart Pro-Series 270L Eligible for STCs?
Dux lists both the 270DHB36 and 270DHB36P as eligible for Small-scale Technology Certificates where current scheme and installation requirements are met.
STC quantities reduce over time and vary by installation zone and installation year, so the value should be confirmed for the actual installation rather than assumed from an older published figure.
Additional state-based incentives may also apply in eligible locations.
Questions About the Dux Ecosmart Pro-Series 270L
Can I Buy the Pro-Series 270L Supply Only?
Yes. Supply-only ordering is suitable if you already have the required licensed trades arranged.
Can Installed Today Install the Pro-Series 270L?
Supply and installation may be available in selected Brisbane and Gold Coast service areas, subject to service coverage, site suitability and installation availability.
What Are the Model Numbers?
The current models are 270DHB36 for the hardwired version and 270DHB36P for the plug-in version.
How Much Hot Water Does It Store?
The Pro-Series has a 270L storage capacity.
How Many People Can It Suit?
Dux lists the model for households of up to 7 people on a continuous tariff, subject to actual hot water usage.
What Is the Heat Pump Heating Capacity?
The current specification lists a rated heat pump heating capacity of 3.6 kW.
How Fast Does It Recover?
Dux states the heat pump can heat up to 77 litres per hour under stated conditions and heat a full tank in around 3.5 hours at the specified test condition.
What Is the COP?
Dux publishes a COP of 4.7 under stated test conditions.
How Much Energy Can It Save?
Current Dux literature states that the Pro-Series can use up to 75% less energy than a standard electric water heater under the manufacturer's stated test conditions. Actual savings vary.
What Refrigerant Does It Use?
The system uses R290 natural refrigerant with a listed charge of 680 grams.
Does It Have Defrost?
Yes. Dux lists an active defrost function for colder climates.
What Is the Heat Pump Operating Range?
The listed ambient heat pump operating range is approximately -5°C to +43°C.
What Is the Difference Between the Hardwired and Plug-In Models?
The hardwired 270DHB36 has a 2.4 kW electric element and 14.5 A rated current input. The plug-in 270DHB36P has a 1.0 kW electric element and 8.8 A rated current input and is supplied with a 3m lead for a suitable 10A GPO.
Does the Plug-In Model Use a Standard 10A GPO?
Yes. Dux states that the plug-in model is supplied with a 3m power cord for connection to a suitable 10A GPO.
What Are the Dimensions?
The system is approximately 2010 mm high x 640 mm nominal diameter, with total depth including the top cover of approximately 673 mm.
How Much Does It Weigh?
The listed net weight is approximately 114 kg.
What Is the Maximum Inlet Water Pressure?
Dux lists a maximum inlet water pressure of 800 kPa.
What Is the Relief Valve Rating?
The listed relief valve rating is 1000 kPa / 10 kW.
Does It Need Condensate Drainage?
Yes. A suitable condensate drainage arrangement is required for heat pump operation.
Can It Work With Solar PV?
The touchscreen scheduling function can be used to schedule heating around periods of available solar generation where that suits the household and electrical setup.
Can It Replace an Electric Storage Water Heater?
Potentially, yes. The site still needs suitable airflow, drainage, electrical supply, water pressure, plumbing, base support and delivery access.
Is It Eligible for STCs?
Yes, where current Small-scale Renewable Energy Scheme and installation requirements are met.
Dux Ecosmart Pro-Series 270L Warranty
Dux currently lists a 5-year warranty on the tank and refrigeration components including labour, plus a 1-year parts and labour warranty on other components, subject to current Dux warranty terms and conditions.
Correct installation, suitable water pressure, adequate airflow, condensate drainage and maintenance in accordance with Dux requirements are important to reliable operation and warranty compliance.
Why Order the Dux Ecosmart Pro-Series 270L From Installed Today?
Supply-Only Ordering
Suitable for customers who already have licensed trades arranged and simply need the correct Pro-Series model supplied.
Installation Options
Eligible Brisbane and Gold Coast customers can check available supplied-and-installed options.
Clear Installation Add-Ons
Valve work, electrical requirements, drainage, pipework changes, removal, disposal and other installation requirements can be separated from the unit price where applicable.
Is the Dux Ecosmart Pro-Series 270L Right for You?
The Dux Ecosmart Pro-Series 270L is primarily suited to family households and higher hot water users wanting strong heat pump recovery, substantial storage and flexible scheduling.
Its key characteristics include a 270L tank, sizing for up to 7 people on a continuous tariff, up to 77 L/hr heat pump recovery, R290 refrigerant, active defrost and separate hardwired and 10A plug-in model options.
Before ordering, confirm whether you need the 270DHB36 hardwired or 270DHB36P plug-in model and check household demand, dimensions, electrical supply, airflow, condensate drainage, water pressure, access and installation requirements. Choose supply only if your licensed trades are already arranged, or check available Brisbane and Gold Coast installation options where applicable.
Tempering valve information:
Where a hot water system is capable of delivering water above 50°C, a compliant tempering valve must be installed to control the temperature delivered to personal hygiene fixtures such as showers, baths, basins, and bathroom outlets. This helps reduce the risk of scalding and assists with meeting plumbing compliance requirements.
A tempering valve blends hot and cold water to deliver a safer controlled outlet temperature to required fixtures. The hot water unit itself may store water at a higher temperature, but the water delivered to personal hygiene outlets must be controlled where required by plumbing regulations.
If your property already has a suitable, compliant tempering valve installed, your licensed plumber can assess whether it is appropriate for use with the new hot water system. Existing valves may not always be suitable due to age, condition, compliance requirements, valve type, location, or system compatibility.
If a compliant tempering valve is not already installed, or if the existing valve is unsuitable, one must be supplied and installed by a licensed plumber as part of the hot water installation.
Tempering valves are not automatically included with every supply-only hot water unit unless specifically selected, listed as included, or purchased as part of a suitable valve kit. If a tempering valve is required, please purchase the appropriate valve kit with your order or arrange for your licensed installer to supply and install the correct tempering valve on site.
It is the customer’s responsibility to ensure the installation is completed by appropriately licensed trades and that all required valves, fittings, electrical work, plumbing work, and compliance requirements are allowed for as part of the installation.
A Simpler Way to Buy Hot Water, Filters, Pumps and Plumbing Products
Buying a new hot water system, water filter, pump or plumbing product should be clear, simple and easy to organise.
Installed Today helps you compare products, check supply-only pricing and, where available, build an optional installation package before checkout. That means you can choose the product, review the available options and order with more confidence, without the usual back and forth just to understand the starting price.
Whether you already know exactly what you need or you are still comparing options, Installed Today gives you a clearer way to buy the right product for your home, budget and timing.
Why Customers Choose Installed Today
Supply Only or Optional Installation
Choose the product on its own, or add installation where available on selected products and in eligible service areas. This gives you the flexibility to order the way that suits you best.
Clear Pricing Before Checkout
See the product price upfront, then review available installation options and common add-ons before placing your order. You can check the package total before checkout, instead of waiting on basic pricing just to get started.
Product Details That Actually Help
Key specs, sizing details, warranty information, product features and suitability notes are shown clearly, making it easier to compare products properly before you buy.
Common Installation Add-Ons Available
Where relevant, you can add common installation extras such as valve kits, bases, access-related items, removal, electrical options or other site-specific upgrades before checkout.
Built Around Brisbane and Gold Coast Homes
Our product and installation options are selected with common Brisbane and Gold Coast homes in mind, including local water quality, access issues, plumbing layouts, replacement requirements and typical installation conditions.
One Simple Order
Add the product and selected options to cart in one order, instead of trying to organise separate suppliers, installers, parts and payments yourself.
Practical Help Before You Buy
Not sure which size, model or installation option is right? Installed Today gives you a clearer path to compare your options before you order.
Designed to Make Your Decision Easier
Installed Today is built for customers who want a faster, clearer and more convenient way to buy.
Instead of guessing what is included, waiting for basic pricing or trying to work out which extras may be needed, you can review the product, compare your options and move forward with confidence.
Choose supply only if you just need the product.
Choose an optional supplied and installed package where installation is available and you want the product and selected install options organised in one order.
Add common extras before checkout if your job needs additional parts, removal, access support or site-specific options.
It is a simpler way to organise the product, the selected extras and the parts of the job that matter most.
Important Installation Note
Installation availability, inclusions and add-ons vary by product type, service area, site access, existing services, selected options and property requirements.
Some jobs may require additional work, upgrades or checks before installation can proceed. Final suitability may need to be confirmed based on site conditions, plumbing, electrical requirements, valves, drainage, access and compliance requirements.
Supply-only orders do not include installation, old unit removal, disposal, valve kits, electrical work, plumbing alterations or compliance upgrades unless these are clearly selected or included in your order.
Fast Delivery and Install-Aligned Shipping
Installed Today makes delivery simple, whether you are ordering supply-only or choosing an optional install package.
For supply-only orders, you can select from available delivery options at checkout. For eligible orders with installation selected, shipping is included and coordinated to align with your selected installation period where possible.
Delivery Options
Same Day Delivery
Same day delivery may be available for selected hot water systems in Brisbane and Gold Coast metro areas when ordered before 7:00am.
Availability depends on stock, courier capacity, delivery location, product type and safe transport conditions.
Express Delivery
Express delivery is available on selected products and locations, with an estimated delivery timeframe of 1–4 business days.
Standard Delivery
Standard delivery is available on selected products, with an estimated delivery timeframe of 2–8 business days.
Free Shipping with Installation
When you select an eligible installation package, delivery is included as part of the supplied and installed order.
Your product delivery will be organised to align with your selected installation period where possible, helping avoid separate courier timing, storage issues or delays between delivery and installation.
Fast Metro Delivery
Most hot water orders in metro areas are delivered quickly, with many arriving within 1 business day depending on stock, location, order time and courier availability.
Weather and Transport Delays
Hot water systems are large, heavy products and cannot always be transported safely during rain or unsafe handling conditions.
Delivery timeframes may be affected if wet weather impacts loading, unloading, transport access or safe delivery conditions.
Express Delivery Refund
If your express delivery order takes longer than the estimated 1–4 business day express timeframe, your order will move to the standard 2–8 business day delivery timeframe and your express shipping charge will be refunded automatically.
Order Tracking
We will send your delivery details once your order has been dispatched or scheduled.
For supplied and installed orders, delivery timing may be coordinated around your selected installation period rather than sent as a separate courier-only delivery.
Need Help with Delivery?
Not sure whether to choose supply-only delivery or an optional install package? Contact our team before ordering and we can help you understand the best option for your product, location and timing.
