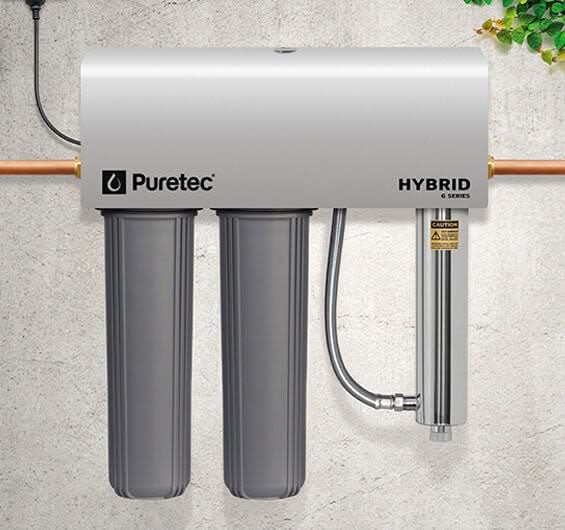

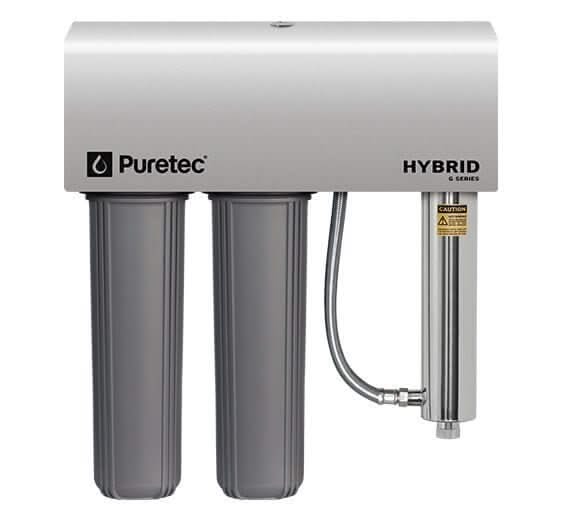

The Puretec Hybrid G7 is a high-capacity whole-house dual-stage filtration and ultraviolet treatment system designed primarily for rainwater. Rather than being a small under-sink or inline kitchen filter, the Hybrid G7 treats the property's main water supply before water is distributed to downstream taps, showers and appliances.
The HYBRID-G7-LF combines a PL05MP2 5 micron washable sediment cartridge with a DP10MP2 10 micron dual-purpose carbon cartridge, followed by Puretec Radfire ultraviolet treatment using an RL6 46W UV lamp and RQS6 quartz sleeve.
Puretec now identifies the Hybrid G7 as a discontinued model. Existing systems remain serviceable with genuine replacement filters, UV components and the HR-G7R2 maintenance kit, while new installations should also consider Puretec's current Hybrid E Series.
The Hybrid G7 treats the main incoming water supply rather than a single drinking-water outlet. Water first moves through two large 20-inch filtration cartridges before entering the stainless-steel ultraviolet chamber.
The first stage removes sediment such as silt, sludge, dirt and rust. The second stage combines sediment filtration with carbon treatment to reduce chlorine taste, unwanted taste and odour. The UV stage then provides chemical-free microbiological treatment.
Puretec states that its Radfire UV technology is capable of reducing up to 99.99% of E. coli, Giardia and Cryptosporidium cysts when the system is operated and maintained within the manufacturer's specified water-quality and flow conditions.
No. The Hybrid G7 is not a compact carbon filter installed beneath one kitchen sink, and it does not simply connect to an existing kitchen mixer.
It is a substantial whole-house point-of-entry filtration and UV system using two 20-inch MaxiPlus filter housings, an ultraviolet chamber, electrical controller and weather-protected cabinet.
Its purpose is to treat water before it enters the property's internal plumbing network so multiple downstream outlets can receive treated water.
Puretec describes the G7 as a high-capacity system suited to medium-to-large applications requiring longer-life 20-inch cartridges.
The Hybrid G Series is designed specifically around whole-house treatment of common rainwater supplies.
The G7 combines filtration and ultraviolet treatment in one unit, making it suitable where cartridge filtration alone does not provide the required microbiological treatment.
The washable PL05MP2 first stage reduces silt, sludge, dirt, rust and other suspended sediment before water reaches the second cartridge.
The DP10MP2 dual-purpose carbon cartridge provides sediment filtration while reducing chlorine taste, unwanted taste and odour.
The Radfire UV stage provides chemical-free treatment against microorganisms including E. coli, Giardia and Cryptosporidium cysts under suitable operating conditions.
Puretec currently marks the Hybrid G7 as discontinued and directs customers toward newer Hybrid E Series whole-house filtration and UV systems.
Existing G7 installations can continue to be maintained because Puretec still lists the required PL05MP2 and DP10MP2 cartridges, RL6 UV lamp, RQS6 quartz sleeve and HR-G7R2 maintenance kit.
If purchasing a new system, remaining G7 stock should be confirmed before ordering and compared against current Puretec alternatives based on actual water source, required flow and UV-treatment requirements.
*Puretec specifies a 3-year parts warranty, including parts and labour during the first year where applicable, followed by a further 2 years parts only. Consumables are excluded.
A washable 5 micron pleated sediment cartridge captures silt, sludge, dirt, rust and suspended particles.
A 10 micron dual-purpose carbon cartridge provides additional sediment filtration while reducing chlorine taste, unwanted taste and odour.
Filtered water enters the stainless-steel UV chamber where ultraviolet light provides chemical-free microbiological treatment.
Puretec's Radfire ultraviolet technology is designed to treat microorganisms without dosing the water with treatment chemicals.
The manufacturer states that the Hybrid G Series can reduce up to 99.99% of E. coli, Giardia and Cryptosporidium cysts under the required operating conditions.
Effective UV treatment depends on water clarity. Sediment, iron, manganese, hardness and other substances can reduce UV transmittance or build up on the quartz sleeve. Puretec recommends a UVT test where the clarity of the source water is uncertain.
Puretec publishes a 130 L/min headline maximum flow for the Hybrid G7, together with separate UV performance figures based on ultraviolet dose.
| Published Rating | Flow Rate | Purpose |
|---|---|---|
| G7 Headline Maximum | 130 L/min | Manufacturer's headline maximum-flow figure for the 20-inch Hybrid G7. |
| UV Dose 40 mJ/cm² | 54 L/min | Higher UV dose at a lower flow rate. |
| UV Dose 30 mJ/cm² | 70 L/min | Puretec identifies 30 mJ/cm² as the industry-standard UV dose for drinking water. |
| UV Dose 16 mJ/cm² | 130 L/min | Lower UV dose at the highest published flow. |
System sizing should consider the required UV dose as well as peak household water demand. The 130 L/min headline figure should not be treated as equivalent to 130 L/min at the 30 or 40 mJ/cm² UV doses.
Combines sediment filtration, carbon treatment and ultraviolet treatment in one whole-house unit.
The larger 20-inch filters provide increased sediment capacity compared with the smaller G6 system.
The G Series incorporates a weather-protection cabinet designed for suitable outdoor installations.
An anti-tamper and childproof lockable lid protects the internal controls while allowing servicing access.
The controller monitors UV lamp life and provides audible and visible warning functions.
Puretec specifies a lightweight high-strength aluminium bracket with protective coating for durability.
| Specification | Details |
|---|---|
| Brand | Puretec |
| Product | Hybrid G7 Dual Stage Whole House Filtration & UV System |
| Model | HYBRID-G7-LF |
| Manufacturer Status | Discontinued |
| Application | Whole-house / point-of-entry filtration and ultraviolet treatment |
| Primary Water Source | Rainwater |
| Other Listed Water Source | Mains water |
| Filtration Stages | 2 cartridge stages plus UV treatment |
| System Micron Rating | 5 micron nominal |
| Stage 1 Cartridge | PL05MP2 – washable pleated sediment cartridge |
| Stage 1 Rating | 5 micron |
| Stage 2 Cartridge | DP10MP2 – dual-purpose carbon cartridge |
| Stage 2 Rating | 10 micron |
| Cartridge Size | 4.5" × 20" MaxiPlus |
| UV Lamp | RL6 – 46W |
| Quartz Sleeve | RQS6 |
| Headline Maximum Flow | 130 L/min |
| Flow @ 40 mJ/cm² | 54 L/min |
| Flow @ 30 mJ/cm² | 70 L/min |
| Flow @ 16 mJ/cm² | 130 L/min |
| Connection | 1" BSP / 25mm |
| Supply Pressure | 300–875 kPa* |
| Water Temperature | 0–52°C, protect from freezing |
| Electrical Supply | AC 240V / 50Hz for UV system |
| Approx. Dimensions | 670mm wide × 760mm high × 211mm deep |
| Certification | WMTS103:2016, Licence No. WM 74593 |
| Manufacturer Warranty | 3 years parts; first year includes parts and labour where applicable, followed by 2 years parts only |
*Puretec states that where line pressure exceeds 500 kPa, an approved pressure-limiting device must be installed to comply with applicable Australian and New Zealand plumbing requirements.
The UV stage requires water with sufficient clarity for ultraviolet light to reach microorganisms effectively. Puretec publishes maximum recommended water-quality parameters to reduce deposits on the quartz sleeve and maintain UV performance.
| Water Parameter | Puretec Recommended Maximum |
|---|---|
| Iron | Less than 0.3 mg/L |
| Hydrogen Sulfide | Less than 0.05 mg/L |
| Suspended Solids | Less than 10 mg/L |
| Manganese | Less than 0.05 mg/L |
| Hardness | Less than 110 mg/L |
Water outside these parameters may require additional treatment or more frequent servicing. Puretec recommends confirming UV transmittance where source-water clarity is uncertain.
A 4.5-inch × 20-inch washable pleated sediment cartridge with a nominal 5 micron rating. Puretec specifies it for reduction of dirt, silt, rust and suspended particles.
A 4.5-inch × 20-inch, 10 micron dual-purpose carbon cartridge providing sediment filtration together with chlorine taste and odour reduction.
The Hybrid G7 uses the Puretec RL6 46W ultraviolet lamp together with the Puretec RQS6 quartz sleeve.
The clear quartz sleeve separates the UV lamp from the water while allowing ultraviolet energy to pass through the chamber. It needs to remain clean because mineral or biological deposits can reduce UV transmission.
Puretec specifies the HR-G7R2 maintenance kit for Hybrid G7 and Hybrid R2 systems.
Puretec specifies replacement of the two filtration cartridges every 6 months to maintain filtration performance and water quality.
The RL6 UV lamp must be replaced annually. The manufacturer specifies a rated lamp life of 365 days and recommends annual replacement even if the lamp still appears to illuminate.
Puretec recommends checking the quartz sleeve approximately every 3 months, depending on source-water quality, and cleaning it where deposits have accumulated.
The Hybrid G7 is a whole-house filtration and UV system requiring suitable plumbing, structural mounting and electrical provision.
Yes. The G7 contains a powered ultraviolet treatment system and requires an AC 240V / 50Hz electrical supply for the UV lamp and controller.
The original claim that the G7 requires no electricity is not applicable to the Hybrid G7. Without electrical power, the ultraviolet treatment stage cannot operate normally.
Puretec also recommends surge protection and warns against using long extension leads that may cause voltage drop or poor lamp performance.
Yes. The Hybrid G Series incorporates a weather-protection cover designed for suitable outdoor installations.
Puretec also specifies anti-corrosion construction, a coated aluminium bracket and an anti-tamper and childproof lockable lid.
The unit should still be protected from freezing and from unusually aggressive environments such as excessive salt or corrosive chemical exposure.
Two 20-inch MaxiPlus filter housings with PL05MP2 and DP10MP2 filtration stages.
Integrated ultraviolet chamber with RL6 lamp, RQS6 quartz sleeve and electronic lamp monitoring.
Weather-protection cover, coated aluminium mounting bracket and lockable hinged lid for access to UV components.
Puretec's published Hybrid G7 product documentation does not list fluoride reduction as a treatment function of the standard PL05MP2 and DP10MP2 cartridge combination.
If fluoride reduction is an installation requirement, a Puretec system or dedicated cartridge specifically rated by the manufacturer for fluoride reduction should be selected rather than assuming the Hybrid G7 will provide that treatment.
Where remaining stock is available, choose supply only if you already have suitable licensed plumbing and electrical installation arrangements in place.
Eligible Brisbane customers can check remaining G7 availability together with current whole-house rainwater filtration and UV installation options.
Eligible Gold Coast customers can also check stock and installation options, including plumbing, pressure, electrical and water-quality requirements.
Because Puretec has discontinued the Hybrid G7, supply-only availability depends on remaining stock. Where available, Installed Today can offer supply across supported Australian delivery areas.
Existing G7 owners can continue sourcing genuine maintenance components including the PL05MP2, DP10MP2, RL6, RQS6 and complete HR-G7R2 maintenance kit.
Where remaining G7 stock is available, Brisbane customers can check supplied-and-installed options for the Puretec Hybrid G7.
A typical installation requires connection to the main cold-water supply, secure wall mounting, correctly sized plumbing, suitable pressure control, backflow protection where required and electrical power for the ultraviolet system.
For rainwater properties, pump performance, source-water quality, required peak flow and UV-treatment requirements should be considered before installation.
Eligible Gold Coast customers can also check remaining G7 stock and installation availability. The unit requires sufficient wall space as well as service clearance for the two 20-inch cartridges and UV lamp.
Water quality should be assessed where necessary because ultraviolet performance depends on suitable incoming-water clarity and correct system flow.
No. The Hybrid G7 is a whole-house dual-stage filtration and ultraviolet system installed on the property's main water line.
Yes. Puretec currently identifies the Hybrid G7 as a discontinued model.
Yes. Puretec continues to list the filtration cartridges, UV lamp, quartz sleeve and HR-G7R2 maintenance kit required for existing G7 systems.
It has two cartridge filtration stages followed by ultraviolet treatment.
The G7 uses the PL05MP2 sediment cartridge and DP10MP2 dual-purpose carbon cartridge.
Puretec lists the G7 as a 5 micron system. The PL05MP2 is rated at 5 micron and the DP10MP2 at 10 micron.
Yes. Puretec states that the DP10MP2 dual-purpose cartridge reduces chlorine taste and odour while also providing sediment filtration.
Yes. Puretec states that its Radfire UV technology can reduce up to 99.99% of E. coli, Giardia and Cryptosporidium cysts under suitable operating conditions.
The Hybrid G7 uses the Puretec RL6 46W UV lamp.
The G7 uses the Puretec RQS6 quartz sleeve.
Puretec publishes a headline maximum flow of 130 L/min.
Puretec publishes 70 L/min at 30 mJ/cm² and identifies 30 mJ/cm² as the industry-standard UV dose for drinking water in its Hybrid G documentation.
The Hybrid G7 uses 1-inch BSP / 25mm connections.
The manufacturer drawing shows approximately 670mm wide × 760mm high × 211mm deep.
Yes. Rainwater is the primary application for the Puretec Hybrid G Series.
Yes. Puretec also lists the Hybrid G Series as suitable for mains-water supply.
Yes. The Hybrid G Series has a weather-protection cover designed for suitable outdoor installations.
Yes. Electrical power is required for the UV lamp and electronic controller.
Yes. Puretec specifies audible and visible UV failure warnings together with a lamp countdown timer.
Puretec specifies replacement of the PL05MP2 and DP10MP2 cartridges every 6 months.
Puretec specifies annual UV-lamp replacement, with the RL6 lamp having a rated life of 365 days.
Puretec recommends inspecting the quartz sleeve approximately every 3 months, depending on source-water quality.
The correct manufacturer maintenance kit is the Puretec HR-G7R2.
Puretec does not publish fluoride reduction as a standard treatment claim for the Hybrid G7.
Puretec's Hybrid installation guide states that the water-treatment system should be installed by a fully qualified and licensed plumber, with electrical requirements handled in accordance with applicable regulations.
Supply-only availability depends on remaining stock because Puretec has discontinued the model.
Where remaining stock and suitable installation options are available, eligible Brisbane and Gold Coast customers can check installation options. For new projects, current Puretec alternatives can also be considered against the site's flow, water-quality and UV-treatment requirements.
Puretec specifies a total 3-year parts warranty for the Hybrid G7, including parts and labour during the first year where applicable, followed by a further 2 years parts only.
Filter cartridges, UV lamps and other consumable maintenance components are subject to Puretec's applicable warranty exclusions. Warranty coverage also depends on correct installation and maintenance in accordance with the manufacturer's instructions.
Installed Today can help existing Hybrid G7 owners source genuine Puretec service components including the PL05MP2, DP10MP2, RL6 lamp, RQS6 sleeve and HR-G7R2 maintenance kit. Where a new G7 is no longer available, a current Puretec filtration and UV system can be selected around the property's actual treatment and flow requirements.
The Puretec Hybrid G7 is a discontinued high-capacity whole-house rainwater filtration and ultraviolet system. Its two 20-inch cartridge stages provide sediment and carbon treatment before water passes through the RL6 Radfire UV chamber.
It remains relevant for existing installations because Puretec continues to support its genuine maintenance components. For a completely new installation, remaining G7 stock should be confirmed first and compared with Puretec's current Hybrid E Series using the property's actual water source, required flow, UV dose, available pressure and installation conditions.
