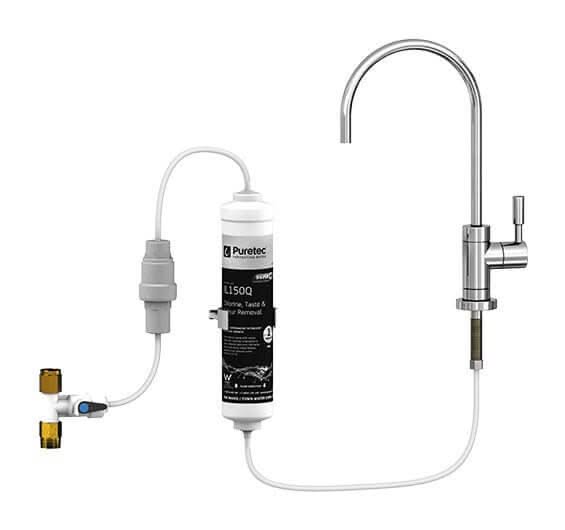

The Puretec X4 is a compact inline undersink drinking-water filtration system supplied with a dedicated Puretec DFU180 high-loop chrome faucet. Puretec lists the X4 for mains, rain and harsh water applications, with a silver-impregnated inline cartridge designed to reduce sediment, chlorine, unwanted tastes and odours.
The current X4-LF uses the Puretec IL150Q replacement cartridge and has a nominal filtration rating of 1 micron. Its slim inline design can be mounted horizontally or vertically, making it useful where cupboard space is limited.
Installed Today offers the Puretec X4 as a supply-only water filtration system, with supplied-and-installed options available across eligible Brisbane and Gold Coast service areas.
The X4 diverts water from the cold-water supply through its inline filtration cartridge before delivering the treated water through the included dedicated drinking-water faucet.
The system is designed to improve drinking-water clarity, taste and odour by reducing sediment and other unwanted substances while retaining naturally occurring essential minerals and fluoride.
The slim inline cartridge takes up less room than larger multi-housing systems and can be mounted horizontally or vertically.
Puretec's current product information lists the X4 for mains, rain and harsh water applications where its filtration capability matches the water-treatment requirements.
Suitable for kitchens wanting a separate filtered drinking-water faucet for filling glasses, bottles, kettles and cooking containers.
The X4 has a nominal 1 micron system filtration rating and is designed to reduce sediment and suspended matter from the water supply.
Puretec specifies the X4 for reducing chlorine, unpleasant tastes and odours to improve the drinking-water experience.
The slim cartridge and flexible mounting arrangement provide an undersink filtration option without requiring a large twin-filter housing assembly.
*Puretec specifies 1 year parts and labour plus a further 9 years parts only. Consumable filter cartridges are excluded.
You want a compact dedicated drinking-water filter that reduces sediment, chlorine, taste and odour without requiring a large undersink filter assembly.
You require whole-house filtration, reverse osmosis, ultraviolet disinfection or contaminant reduction beyond the published capability of the X4.
Confirm your water source, water quality, pressure, available undersink space and suitable position for the dedicated drinking-water faucet.
Puretec's current X4 product page lists the system as suitable for mains, rain and harsh water. Puretec's X4 technical specification sheet also describes the system for mains, rain, harsh and rural water supplies.
Water from untreated sources can have very different microbiological and chemical treatment requirements. Puretec's operating guide cautions against using the system with microbiologically unsafe water or water of unknown quality without adequate disinfection before or after filtration.
Where rainwater, bore water or another untreated source is involved, the complete water-treatment requirements should be confirmed rather than relying on the X4 cartridge alone for disinfection.
Water is diverted from the supply through the inline IL150Q cartridge and then delivered to the dedicated Puretec DFU180 drinking-water faucet.
The X4 connects to the water supply through ¼-inch quick-connect tubing and the supplied plumbing components.
Water passes through the silver-impregnated IL150Q cartridge, with the X4 system specified at a nominal filtration rating of 1 micron.
The treated water is delivered through the included DFU180 high-loop faucet independently from the normal kitchen mixer.
Puretec describes the X4 cartridge as silver impregnated to inhibit bacterial growth within the cartridge and help extend filter life.
The X4 system is specified by Puretec with a nominal filtration rating of 1 micron.
The included DFU180 is a dedicated chrome drinking-water faucet with a high-loop design and quarter-turn spindle lever.
The inline cartridge can be mounted vertically or horizontally to help suit different undersink cupboard layouts.
Puretec includes a multifunction valve for pressure reduction as part of the X4 installation kit.
Puretec states that the X4 does not remove essential minerals or fluoride from the water.
| Specification | Details |
|---|---|
| Brand | Puretec |
| Product | X4 Inline Undersink Water Filter with High-Loop Faucet |
| Current Model | X4-LF |
| Filter Type | Slim inline undersink drinking-water filter |
| Replacement Cartridge | Puretec IL150Q |
| Nominal Micron Rating | 1 micron |
| Cartridge Size | 10 inch |
| Faucet | Puretec DFU180 high-loop chrome faucet |
| Connection | ¼" Quick Connect |
| Required Faucet Hole | 12.5mm diameter |
| Technical Sheet Flow Rate | 1.9 litres per minute |
| Technical Sheet Pressure Range | 100–500 kPa |
| Technical Sheet Temperature Range | 0–38°C |
| Mounting | Horizontal or vertical |
| Vertical Space | Approximately 350mm high × 120mm wide |
| Horizontal Space | Approximately 120mm high × 350mm wide |
| WaterMark | AS 3497, Licence No. WM 74617 |
| Manufacturer Warranty | 10 years — 1 year parts and labour plus 9 years parts only |
Puretec's current online X4 product listing publishes a 0–7 L/min flow range, 2–38°C temperature range and 100–520 kPa pressure range, while its March 2024 X4 technical sheet and operating guide publish 1.9 L/min, 0–38°C and 100–500 kPa. The technical-document figures are shown above for installation guidance; confirm current manufacturer limits where system sizing depends on these values.
The X4 uses the Puretec IL150Q replacement cartridge. Puretec describes the IL150Q as a slim inline silver-impregnated cartridge designed for installations where available space is limited.
The X4 product documentation specifies this cartridge as part of the system's sediment, chlorine, taste and odour reduction process.
IL150Q
10-inch slim inline replaceable cartridge with ¼-inch quick-connect plumbing.
Puretec specifies genuine Puretec replacement cartridges for continued system operation and manufacturer warranty requirements.
Puretec recommends changing the X4 cartridge every 6–12 months, depending on water quality and usage.
The X3/X4 operating guide specifies replacement at least every 9,500 litres or 6–12 months, whichever occurs first, or sooner if a change in taste, odour or water flow is detected.
Actual service life varies because sediment, chlorine and organic-substance levels differ between water supplies.

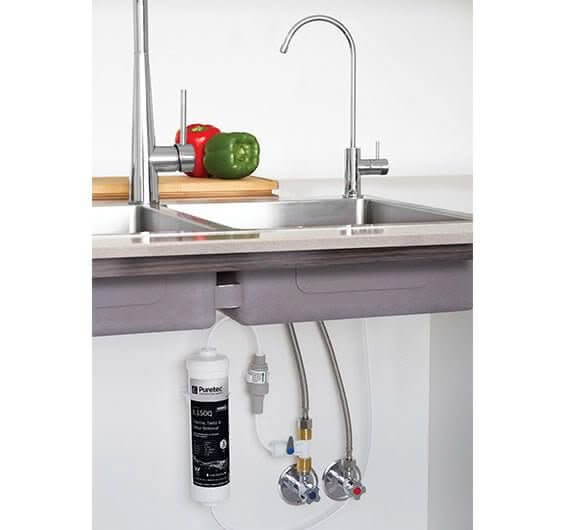

The X4 is designed for compact undersink installation. The inline cartridge can be positioned vertically or horizontally and should remain accessible for future cartridge replacement.
The X4 is designed specifically as a slimline filtration system for areas where cabinet space is limited.
Allow approximately 350mm high × 120mm wide for the filter installation.
Allow approximately 120mm high × 350mm wide for the filter installation.
The X4 includes the Puretec DFU180, a dedicated high-loop chrome filter faucet. Puretec specifies the DFU180 with a ¼-turn spindle lever.
The faucet requires a 12.5mm diameter installation hole. Its high-loop design provides clearance above the sink for everyday drinking-water use and filling containers.
The X4 inline filtration system with Puretec IL150Q silver-impregnated replacement cartridge format and mounting bracket.
Puretec DFU180 chrome high-loop dedicated drinking-water faucet.
Puretec lists the SmartTee, tubing, mounting bracket, multifunction pressure-control valve and standard plumbing installation fittings as included.
Choose supply only if you need the Puretec X4 supplied and already have suitable plumbing or installation arrangements in place.
Eligible Brisbane customers can check available supplied-and-installed options for the Puretec X4 undersink filtration system.
Eligible Gold Coast customers can also select available installation options and confirm any site-specific requirements before ordering.
Installed Today offers supply-only ordering for the Puretec X4 across supported Australian delivery areas. Brisbane and Gold Coast customers can also check available supplied-and-installed options.
Customers elsewhere can order the filtration system for delivery where available and arrange suitable local installation.
Brisbane customers can order the Puretec X4 with installation options where available. A typical installation requires connection to the appropriate water supply, mounting of the inline cartridge beneath the sink and installation of the dedicated high-loop drinking-water faucet.
The available cupboard space, water pressure, water source, existing plumbing and faucet position should be checked before installation. Additional fittings or plumbing alterations may be required where the existing setup differs from the manufacturer's standard installation arrangement.
Eligible Gold Coast customers can also order the Puretec X4 with a matching installation option. Its horizontal or vertical mounting capability can be useful in kitchens where undersink cupboard space is restricted.
Future access should be maintained so the IL150Q cartridge can be replaced without removing unrelated kitchen equipment or cabinetry.
The primary maintenance requirement is replacement of the IL150Q cartridge at the required interval. Puretec specifies replacement every 9,500 litres or 6–12 months, whichever occurs first, and sooner where water quality or reduced flow indicates that replacement is required.
After installing a new cartridge, Puretec instructs users to flush the system for approximately 5–10 minutes to remove carbon fines and trapped air.
If the filtration system has not been used for more than two days, Puretec recommends flushing it before normal use.
The X4 is designed to reduce sediment, chlorine, unpleasant taste and odour. Puretec's technical sheet also identifies the system for filtration of mains, rain, harsh and rural water supplies.
The X4 system has a published nominal filtration rating of 1 micron.
The X4 uses the Puretec IL150Q replacement cartridge.
Yes. Puretec describes the X4 filter as silver impregnated to inhibit bacterial growth within the cartridge and help extend cartridge life.
No. Puretec specifically states that the X4 does not remove fluoride or essential minerals.
Yes. The system can be mounted either horizontally or vertically to suit available undersink space.
Puretec specifies approximately 350 × 120mm for vertical mounting or 120 × 350mm for horizontal mounting.
Yes. The system includes the Puretec DFU180 high-loop chrome drinking-water faucet.
The manufacturer specifies a 12.5mm diameter hole.
Yes. Puretec lists the plumbing installation fittings, SmartTee, mounting bracket and multifunction control valve as included with the system.
No electrical connection is required for the filtration system.
No drain connection is required for normal X4 operation.
Puretec's current X4 product page lists the system as suitable for mains, rain and harsh water. Untreated water must still be assessed for any additional filtration or disinfection requirements.
Puretec cautions against using the system with microbiologically unsafe water or water of unknown quality without adequate disinfection before or after the filtration system.
Puretec specifies replacement every 9,500 litres or 6–12 months, whichever occurs first, or sooner if water taste, odour or flow changes.
Yes. Installed Today offers the Puretec X4 as a supply-only product for customers arranging installation separately.
Installation options are available across eligible Brisbane and Gold Coast service areas. The final installation requirements depend on the water supply, existing plumbing, cabinet access and faucet location.
Puretec specifies a total 10-year manufacturer warranty for the X4 system. This consists of 1 year parts and labour followed by a further 9 years parts only.
Consumable filter cartridges are excluded. Puretec also specifies the use of genuine replacement cartridges and installation and operation in accordance with the manufacturer instructions as part of the applicable warranty conditions.
Installed Today gives you a straightforward way to order the Puretec X4 as a product-only purchase or check eligible local installation options, with genuine replacement cartridges available for ongoing system maintenance.
The Puretec X4 is primarily suited to customers wanting a compact inline undersink drinking-water filter with a dedicated high-loop faucet and flexible horizontal or vertical mounting. It is designed to reduce sediment, chlorine, unwanted taste and odour while retaining essential minerals and fluoride.
If your water source requires microbiological disinfection, reverse osmosis, whole-house treatment or more specialised contaminant reduction, another Puretec treatment system may be required. Choose supply only where installation is already arranged, or check Installed Today's available Brisbane and Gold Coast installation options.
