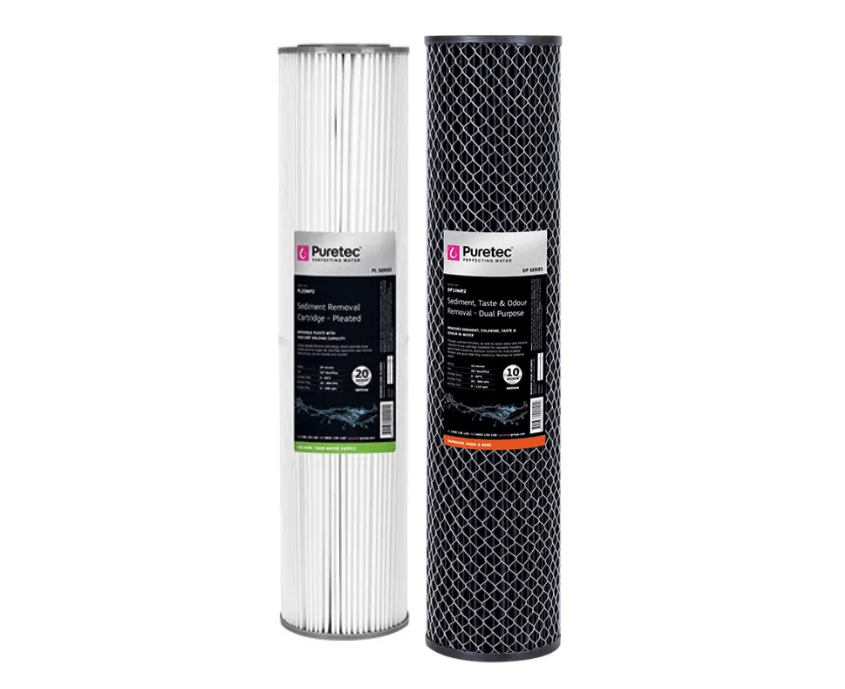

Puretec EM2-100 JR Service Kit (PL05MP2 & DP10MP2)
Installed Today - Water Filter Installation
Recommended

From ... product + package

Live Installation Checker Checking installation availability... Choose your location to check installation availability.
or
Supply Only
Already have your own licensed installer? Buy the water filter without an Installed Today installation package.
...

PURETEC EM2-150 REPLACEMENT CARTRIDGES

Puretec EM2-150 JR Service Kit – PL20MP2 & PX01MP2 Replacement Cartridges

The Puretec EM2-150 JR Service Kit combines the two genuine replacement cartridges specified for the Puretec EM2-150 dual-stage whole-house filtration system: the PL20MP2 20 micron washable pleated sediment cartridge and the PX01MP2 1 micron graded polyspun sediment cartridge.

Both cartridges use Puretec's large 4.5" × 20" MaxiPlus format. The PL20MP2 provides the first coarse sediment stage, followed by the PX01MP2 for finer 1 micron sediment filtration.

This two-cartridge combination restores the filtration sequence specified by Puretec for the EM2-150.

Quick answer: this EM2-150 service kit contains 1 × PL20MP2 and 1 × PX01MP2. Both measure 4.5" × 20". The first cartridge provides washable 20 micron pre-filtration, followed by a 1 micron fine sediment stage. Puretec lists the complete EM2-150 at up to 150 L/min.
PRODUCT AT A GLANCE

EM2-150 JR Service Kit Key Details

2 Cartridges PL20MP2 + PX01MP2
```
20 + 1 Micron Two Sediment Stages
4.5" × 20" MaxiPlus Format
150 L/min EM2-150 System Flow
```
WHAT'S INCLUDED

Two Genuine Puretec Replacement Cartridges

1 × Puretec PL20MP2

A washable 20 micron pleated polyester sediment cartridge used as the first stage in the EM2-150.

```

1 × Puretec PX01MP2

A 1 micron graded polyspun polypropylene sediment cartridge used as the finer second filtration stage.

```
DUAL-STAGE SEDIMENT FILTRATION

Coarse Sediment First, Fine Sediment Second

The Puretec EM2-150 uses two different sediment cartridges so particulate loading is progressively reduced through the system.

Stage 1 uses the PL20MP2 at 20 micron to capture larger suspended material. Stage 2 uses the PX01MP2 at 1 micron to provide finer particulate filtration.

Both stages are sediment filters. The EM2-150 does not use a carbon cartridge as part of this standard cartridge pair.

STAGE 1

Puretec PL20MP2 20 Micron Pleated Sediment Cartridge

The PL20MP2 is a washable pleated sediment cartridge manufactured from non-woven polyester media supported around a polypropylene core.

Its pleated construction creates a large filtration area for capturing suspended material such as dirt, sand, silt and rust before the water moves into the finer second filtration stage.

20 Micron

Provides the coarse first filtration stage specified for the EM2-150.

```

4.5" × 20"

Uses Puretec's large MaxiPlus cartridge format.

188 L/min

Puretec lists the individual PL20MP2 cartridge at up to 188 litres per minute.

Washable

Puretec specifies the pleated polyester media as washable and reusable where appropriate.

Large Surface Area

Pleated media increases the available area for sediment collection.

Sediment Only

The PL20MP2 does not contain activated carbon for dedicated chlorine or taste-and-odour treatment.

```
STAGE 2

Puretec PX01MP2 1 Micron Polyspun Sediment Cartridge

The PX01MP2 provides the finer second filtration stage in the EM2-150.

It is manufactured from virgin polypropylene using Puretec's graded-density polyspun construction, providing nominal filtration down to 1 micron.

1 Micron

Provides fine nominal sediment filtration after the 20 micron first stage.

```

4.5" × 20"

Uses the same MaxiPlus physical format as the PL20MP2.

152 L/min

Puretec lists the individual PX01MP2 cartridge at up to 152 litres per minute.

```
WHAT IT REDUCES

Designed for Sediment Filtration

The EM2-150 cartridge pair is intended to reduce suspended particulate material through progressively finer filtration.

  • Dirt and suspended sediment
  • Rust particles
  • Sand
  • Silt
  • Algae and similar suspended material
  • Fine particulate material down to the nominal second-stage rating
This is not a carbon-filtration service kit. PL20MP2 and PX01MP2 are both sediment cartridges, so the standard EM2-150 cartridge pair should not be described as providing dedicated chlorine, taste or odour reduction.
SYSTEM SPECIFICATIONS

Puretec EM2-150 Technical Details

Specification Puretec EM2-150
Current Model EM2-150-LF
Stage 1 PL20MP2 – 20 micron washable pleated sediment
Stage 2 PX01MP2 – 1 micron graded polyspun sediment
Maximum System Flow 150 L/min
Operating Pressure 200–520 kPa
Operating Temperature 0–52°C, protect from freezing
Connection 1½" BSP [40 mm]
Cartridge Format 4.5" × 20" MaxiPlus
Primary Application High-flow dual-stage sediment filtration
CARTRIDGE COMPARISON

PL20MP2 & PX01MP2 Specifications

Specification PL20MP2 PX01MP2
EM2-150 Stage Stage 1 Stage 2
Type Pleated sediment Graded polyspun sediment
Nominal Rating 20 micron 1 micron
Size 4.5" × 20" 4.5" × 20"
Listed Individual Flow 188 L/min 152 L/min
Media Pleated polyester Virgin polypropylene
Washable Yes Not listed as washable
FLOW RATE

Cartridge Flow vs EM2-150 System Flow

The individual cartridge ratings are not the same as the complete filtration-system rating.

188 L/min PL20MP2 Cartridge
```
152 L/min PX01MP2 Cartridge
150 L/min Complete EM2-150
```

Complete-system flow depends on the combined cartridges, filter housings, pipework, valves and available water pressure.

EM2-140 VS EM2-150

Same Replacement Cartridges, Different System Configuration

Puretec specifies the same PL20MP2 + PX01MP2 replacement combination for both the EM2-140 and EM2-150.

Feature EM2-140 EM2-150
Stage 1 PL20MP2 PL20MP2
Stage 2 PX01MP2 PX01MP2
Maximum Flow 140 L/min 150 L/min
Connection 1" BSP 1½" BSP
WHEN TO REPLACE

How Often Should the EM2-150 Be Serviced?

Puretec's EM Series maintenance guidance specifies cartridge replacement approximately every 6–12 months, depending on water quality and usage.

Service may be required sooner where sediment loading is high or when system flow becomes noticeably restricted.

  • 6–12 month service interval has been reached
  • Water flow has noticeably reduced
  • PL20MP2 is heavily loaded with sediment
  • PX01MP2 is visibly loaded or restricted
  • Incoming water conditions have changed
  • Previous cartridge service date is unknown
WASHABLE FIRST STAGE

Can the PL20MP2 Be Cleaned?

Yes. Puretec specifies the PL20MP2 as a washable pleated cartridge.

Surface sediment may be removed from the pleated media where appropriate, which can help restore flow during the service period.

Washing does not make the cartridge permanent. Replace it when required by the system maintenance schedule or when cleaning no longer restores suitable condition or performance.

SERVICE PROCESS

What Is Involved in an EM2-150 Cartridge Service?

  • Confirm the installed system is an EM2-150
  • Isolate the incoming water supply
  • Relieve system pressure
  • Open the filter housings using the applicable housing wrench
  • Remove the existing PL20MP2 and PX01MP2 cartridges
  • Clean the filter bowls with soap and warm water
  • Rinse the bowls thoroughly
  • Inspect the housing O-rings and sealing surfaces
  • Apply suitable food-grade silicone lubricant where required
  • Install PL20MP2 in stage one
  • Install PX01MP2 in stage two
  • Ensure each cartridge is seated correctly
  • Reassemble the housings without overtightening
  • Restore water pressure gradually
  • Check the complete system for leaks and normal flow
O-RING MAINTENANCE

Inspect Housing Seals at Each Service

Puretec recommends inspecting the filter-housing O-rings whenever cartridges are serviced or replaced.

Damaged, kinked or deteriorated O-rings should be replaced before the system is returned to service. Puretec's general whole-house guidance recommends replacement approximately every 3–5 years, subject to condition.

Use only suitable food-grade silicone lubricant where lubrication is required.

BEFORE ORDERING

Check These Details First

  • Installed system is a Puretec EM2-150
  • Stage one requires PL20MP2
  • Stage two requires PX01MP2
  • Both cartridges are 4.5" × 20" MaxiPlus
  • You require sediment filtration rather than carbon treatment
  • Filter housings are accessible
  • Existing housings and O-rings are serviceable
  • Incoming water can be safely isolated
DIY OR PROFESSIONAL SERVICE

Can the EM2-150 Cartridges Be Replaced Yourself?

Routine cartridge replacement may be practical where the filtration system can be safely isolated, depressurised, opened and correctly resealed.

The EM2-150 uses large 20-inch MaxiPlus housings, which can be heavy when full of water. Suitable access and sufficient working space are important.

Professional servicing may be appropriate where access or system condition is uncertain. Seized housings, damaged seals, leaking valves, cracked bowls or associated pipework issues can require additional parts or repairs beyond the cartridge pair.
ORDERING OPTIONS

Choose How You Want to Order

Supply Only

Order the PL20MP2 and PX01MP2 service pair for delivery to supported Australian locations where you already have a compatible EM2-150.

```

Genuine Service Pair

Replace both manufacturer-specified EM2-150 sediment stages together as part of scheduled system maintenance.

Professional Service Option

Professional EM2-150 cartridge replacement may be available in eligible Brisbane and Gold Coast service areas.

```
COMMON QUESTIONS

Questions About the Puretec EM2-150 JR Service Kit

What Is Included in This Kit?

The kit contains one PL20MP2 20 micron washable pleated sediment cartridge and one PX01MP2 1 micron polyspun sediment cartridge.

Does This Kit Suit the EM2-150?

Yes. Puretec specifies PL20MP2 and PX01MP2 as the two replacement cartridges for the EM2-150.

Which Cartridge Goes First?

The PL20MP2 20 micron cartridge is installed as stage one.

Which Cartridge Goes Second?

The PX01MP2 1 micron cartridge is installed as stage two.

What Size Are the Cartridges?

Both use Puretec's 4.5" × 20" MaxiPlus format.

Is the PL20MP2 Washable?

Yes. Puretec specifies it as a washable pleated polyester sediment cartridge.

What Is the EM2-150 Flow Rate?

Puretec lists the complete system at up to 150 L/min.

What Is the Operating Pressure?

Puretec's current EM2-150 specification lists 200–520 kPa.

What Is the Connection Size?

The EM2-150 uses a 1½" BSP [40 mm] connection.

Does the Service Kit Reduce Chlorine?

No dedicated chlorine-reduction cartridge is included. Both replacement cartridges are sediment filters.

Does It Reduce Taste & Odour?

Not as a dedicated treatment function. The standard EM2-150 cartridge pair is designed for sediment filtration.

Can the EM2-150 Be Used for Rainwater?

Yes. Puretec identifies rainwater as a primary application for the EM2-150.

How Often Should the Cartridges Be Replaced?

Puretec's EM maintenance guidance specifies approximately 6–12 months, depending on water quality and usage.

Should the Housing O-Rings Be Checked?

Yes. Inspect O-rings during each service and replace damaged or deteriorated seals as required.

Can Installed Today Replace the Cartridges?

Professional cartridge replacement may be available in eligible Brisbane and Gold Coast service areas where the system is accessible and in serviceable condition.

WHY INSTALLED TODAY

Order the Correct Puretec EM2-150 Service Pair

Supply First

Purchase the correct Puretec replacement cartridges without adding installation where you already have your own servicing arrangement.

```

Correct Cartridge Sequence

The PL20MP2 followed by PX01MP2 combination matches the current Puretec EM2-150 filtration arrangement.

Installation Capability

If you prefer professional servicing, Installed Today may also be able to replace the cartridges in selected local service areas.

```
FINAL CHECK

Is This the Right Service Kit for Your Puretec EM2-150?

The Puretec EM2-150 JR Service Kit combines the two manufacturer-specified replacement cartridges for the EM2-150: PL20MP2 20 micron washable pleated sediment filtration followed by PX01MP2 1 micron graded polyspun sediment filtration.

Both cartridges measure 4.5" × 20". Puretec lists the complete EM2-150 at up to 150 L/min, with an operating pressure range of 200–520 kPa and a 1½" BSP connection.

Before ordering, confirm that your installed system is an EM2-150 and uses PL20MP2 followed by PX01MP2. Follow Puretec's applicable 6–12 month maintenance guidance, inspect the housing O-rings during servicing and check the complete filtration system for leaks after repressurisation.

Buying a new hot water system, water filter, pump or plumbing product should be simple. Installed Today helps you compare the product, the supply-only price and the available installation options in one place, so you can choose what suits your home, budget and timing without the back and forth.

Whether you already know exactly what you need or you are still comparing options, we make it easier to order with confidence.

Why Customers Choose Installed Today

Supply Only or Installed Options

Choose the product on its own, or add installation where available. This gives you the flexibility to buy the way that suits you best.

Clear Pricing Before Checkout

See your product price upfront, then add the installation options or common extras you need before placing your order. No confusing quote forms just to understand your starting price.

Product Details That Actually Help

Key specs, sizing details, warranty information, product features and suitability notes are shown clearly, so you can compare products properly before you buy.

Installation Add-Ons Available

Where relevant, you can add common installation extras such as valve kits, bases, electrical options, removal, access-related items or other site-specific upgrades before checkout.

Built Around Brisbane and Gold Coast Homes

Our product and installation options are selected with common local homes, water quality, plumbing layouts, access issues and replacement requirements in mind.

One Simple Order

Add the product and selected extras to cart in one order, instead of trying to organise separate suppliers, installers and parts.

Practical Help Before You Buy

Not sure which product, size or installation option is right? Installed Today gives you a clearer path to choosing the right system before you order.

Designed To Make Your Decision Easier

Installed Today is built for customers who want a faster, clearer and more convenient way to buy.

Instead of guessing what is included, waiting for basic pricing or trying to work out which extras are needed, you can review the product, compare your options and move forward with confidence.

Choose supply only if you just need the product.

Choose supplied and installed if you want the product installed where available.

Add common extras before checkout if your job needs additional parts or site-specific options.

It is a simpler way to organise the product and the parts of the job that matter most.

Important Note

Installation availability, inclusions and add-ons vary by product type, site access, existing services, selected options and your property requirements. Some installations may require additional work, upgrades or checks before the job can proceed.

Fast & Reliable Delivery – What to Expect

Same Day Delivery: Available in Brisbane and Gold Coast on select units ordered before 8:00am
Express Delivery: 1–4 business days
Standard Delivery: 2–8 business days

Same Day Delivery

Same day delivery is available for selected hot water systems in Brisbane and Gold Coast metro areas when ordered before 8:00am, subject to stock availability, delivery capacity and suitable transport conditions.

Fast Metro Delivery

Most hot water orders in metro areas are delivered quickly, with around 90% arriving within 1 business day.

Weather Delays

Hot water systems cannot always be transported safely by courier during rain. Delivery timeframes may be affected when wet weather impacts safe handling, loading, unloading or transport conditions.

Express Delivery Guarantee

If your express delivery order takes longer than 1–4 business days, we will adjust the delivery timeframe to our standard 2–8 business days and refund your express shipping charge automatically.

Order Tracking

We will send your delivery details as soon as your order has been dispatched.

Need help with your delivery? Contact our team and we’ll be happy to assist.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Poor water pressure? why not pair with a new pump

View all
Sold Out
Davey Total Flo TF40J 40L/min Pressure Pump with Controller - Installed Today
Davey Total Flo TF40J Rainwater Pressure Pump
Save $70
Sale
Davey Total Flo TF50J 50L/min Pressure Pump with Controller - Installed Today
Davey Total Flo TF50J Rainwater Pressure Pump
Save $90
Sale
DAB E.Sybox Mini 3 850w Wireless Inverter Smart Pump - Installed Today
DAB E.Sybox Mini 3 850w Wireless Inverter Mains Water Boosting Pump
Save $280
Sale
Davey Total Flo TF117MS 117L/min Pressure Pump with Controller - Installed Today
Davey Total Flo TF117MS Rainwater Pressure Pump
Save $120
Sale
DAB E.Sybox 120L/min 45dB Smart Pump - Installed Today
DAB E.Sybox 120L/min Mains Water Boosting Pump
Save $500
Sale
Davey Rainbank KRB2 Surface Mount Pump + Mains Backup + Controller - Installed Today
Davey Rainbank KRB2 Rainwater Harvesting Pump
Save $350
Sale
Bianco INOX45S2NXT 58L/min Pressure Pump with NXT Controller - Installed Today
Bianco INOX45S2NXT Rainwater Pressure Pump
Save $100
Sale
Davey Rainbank KRBS2 Submersible Pump + Mains Backup + Controller - Installed Today
Davey Rainbank KRBS2 Submersible Rainwater Harvesting Pump
Save $350
Sale
Bianco INOX90S2NXT 78L/min Pressure Pump with NXT Controller - Installed Today
Bianco INOX90CORE Rainwater Pressure Pump
Save $130
Sale
Bianco INOX60S2NXT 62L/min Pressure Pump with NXT Controller - Installed Today
Bianco INOX60S2NXT Rainwater Pressure Pump
Save $110
WATER FILTRATION ADVICE

Water Filter Guides & Advice

Helpful Installed Today guides covering whole home water filtration, drinking water filters, under-sink systems, reverse osmosis, Puretec filters and water quality.

Browse all Installed Today guides
Recently viewed
